CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
REACH
RoHS
Product number:
81450
LD Flexible LED Leiste,Innen RGB
Product information "LD Flexible LED Leiste,Innen RGB"
- flexible LED Strip with self adhesive backside,
- for indoor use, IP20

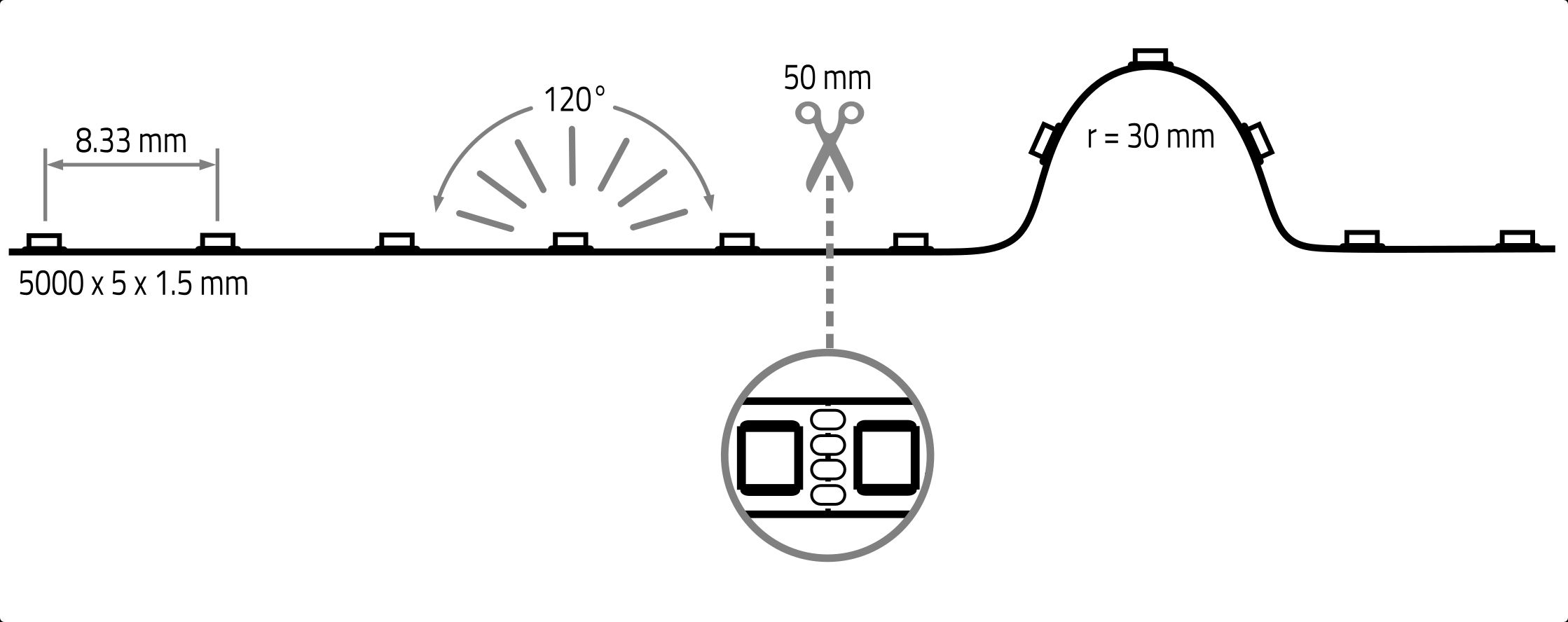

- can be seperated every 50 mm or 6 LEDs
- number of LEDs: 600
- LED pitch: 8.33 mm
- beam angle: 120°
- CRI: -
- luminous flux per meter: 340 lm
- voltage: 24V DC
- power per meter: 7.5 W
- lifetime L70: >= 36,000 h
- LxWxH in mm: 5,000 x 5 x 1.5
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter roll with 120 mm connection cable
Technical Data
| BAR code: | 4012094814506 |
|---|---|
| Width: | 5 mm |
| Height: | 1 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 1700 lm |
| Lumen per LED (lm): | 2,83 lm |
| Current: | 1562 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 120 |
| Cutting length in mm: | 8,33 mm |
| Power W/m: | 7,5 |
| Lumen per meter: | 340 |
| Lumen per watt: | 45,33 |
| IP protection rating: | 20 |
| Power: | 37,5 W |
| Led color code: | RGB |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 600 |
| L70: | 36000 |
| Ecodesign: | not relevant |
