Product number:
81749
LD Flexible COB LED Leiste,Innen RGB-Int.
Product information "LD Flexible COB LED Leiste,Innen RGB-Int."
- flexible LED Strip with self adhesive backside,
- for indoor use, IP20
- Each segment separately programmable
- and individually controllable

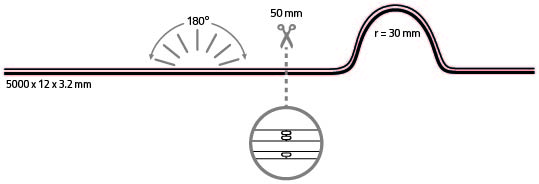

- can be seperated every 50 mm or 36 LEDs
- number of LEDs: 3600
- IC type: WS2811G
- LED pitch: 1.39 mm
- beam angle: 180°
- CRI: -
- luminous flux per meter: 520 lm
- voltage: 24 V DC
- power per meter: 14 W
- lifetime L70B50: >= 54,000 h
- LxWxH in mm: 5,000 x 12 x 3.2
- Maximum length per connection: 11 meter. New connectors for greater length.
- Delivery contents: 5 meter reel
Technical Data
| BAR code: | 4251835717496 |
|---|---|
| Width: | 12 mm |
| Height: | 3 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 2600 lm |
| Lumen per LED (lm): | 0,72 lm |
| Current: | 2917 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 720 |
| Cutting length in mm: | 50 mm |
| Power W/m: | 14 |
| Lumen per meter: | 520 |
| Lumen per watt: | 37,14 |
| IP protection rating: | 20 |
| Power: | 70 W |
| Led color code: | RGB Master |
| Leuchte: | including LED |
| Beam angle: | 180 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 3600 |
| LebensdauerL70B50: | 54000 |
| Ecodesign: | light source |
| Service life L90B10: | 20000 |
