Product number:
81368
LD Flex.LEDStrip,Innen,RGB+25+6500K
Product information "LD Flex.LEDStrip,Innen,RGB+25+6500K"
- flexible LED Strip with self adhesive backside
- for indoor use, IP20

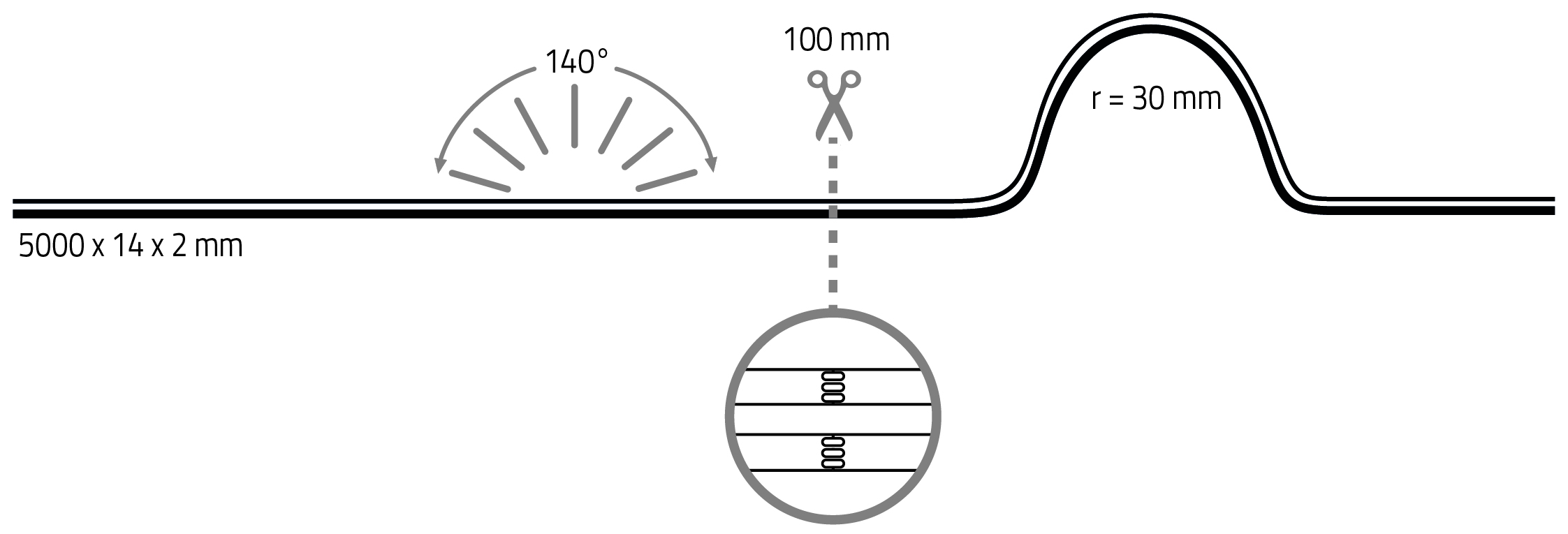

- can be seperated every 100 mm or 70 LEDs
- number of LEDs: 3500
- LED pitch: 7,14 mm
- beam angle: 140°
- CRI: >90
- luminous flux per meter: 1125 lm
- voltage: 24 V DC
- power per meter: 20 W
- lifespan L70B50: >= 36,000 h
- energy efficiency class: G
- LxWxH in mm: 5,000 x 14 x 2
- Caution: Do not operate strip without aluminium profile
- and adequate ventilation.
- Maximum length per connection: 5 metre. New connectors for greater length.
- Delivery contents: 5 meter reel with 300 mm connecting cable
Technical Data
| BAR code: | 4012094813684 |
|---|---|
| Width: | 14 mm |
| Height: | 2 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 5625 lm |
| Lumen per LED (lm): | 1,61 lm |
| Current: | 4167 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 700 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 20 |
| Lumen per meter: | 1125 |
| Lumen per watt: | 56,25 |
| IP protection rating: | 20 |
| Power: | 100 W |
| Energy efficiency class: | EEK-Label_G |
| CRI: | 90 |
| Led color code: | RGBWWW 6500-2500K |
| Leuchte: | without |
| Beam angle: | 140 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 3500 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
