CE
Disposal instructions according to 2012/19/EU
Light source not interchangeable
Parallel connection
Protection class III
REACH
RoHS
UKCA
UV-resistant
Product number:
86018
LD Flex.LEDStrip,24V,WW 10M 120W
Product information "LD Flex.LEDStrip,24V,WW 10M 120W"
- flexible LED Stripe sealed in UV-, chlorine-,
- salt water- and solvent resistant white PVC
- for indoor- and outdoor use, IP68
- cuttable every 100 mm / 6 LEDs
- amount of LEDs per meter: 60
- LED pitch: 16.67 mm
- beam angle: 160°
- CRI: >80
- luminous flux per meter: 645 lm
- power per meter: 12 W
- lifetime L70B50: >= 36.000 h

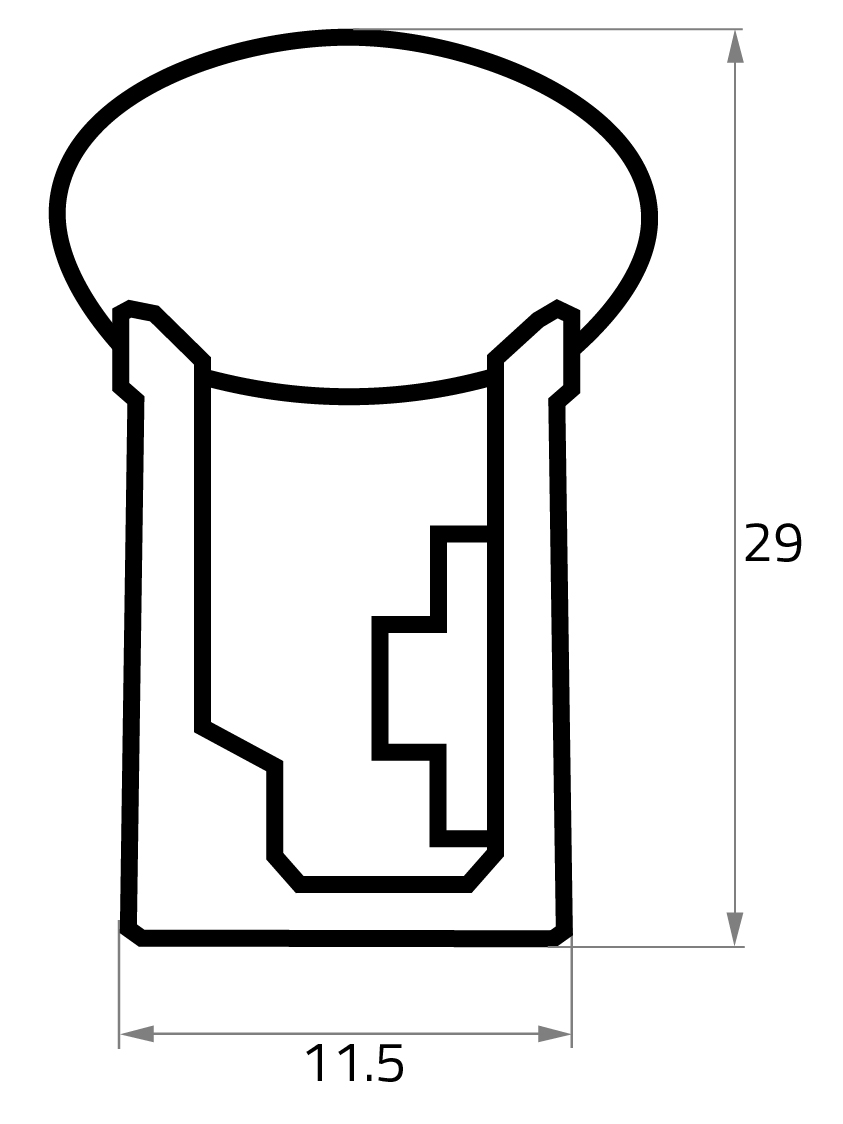

- LxWxH in mm: 10,000 x 11.5 x 29
- temperature range: -20 to +45°C
- processing temperature: +10 to +45°C
- maximum length per connection: 10 meter
- bending radius: 60 mm horizontal
Technical Data
| BAR code: | 4012094860183 |
|---|---|
| Width: | 11 mm |
| Height: | 29 mm |
| Length: | 10000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 6450 lm |
| Lumen per LED (lm): | 10,75 lm |
| Current: | 5000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 12 |
| Lumen per meter: | 645 |
| Lumen per watt: | 53,75 |
| IP protection rating: | 68 |
| Power: | 120 W |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 4000K neutralweiß |
| Leuchte: | including LED |
| Beam angle: | 160 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 600 |
| Gehaeuse code: | Kunststoff |
| Auslaufartikel: | Yes |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
| Psb: | 0,00 |
