CE
Parallel connection
Protection class III
RoHS
Product number:
83633

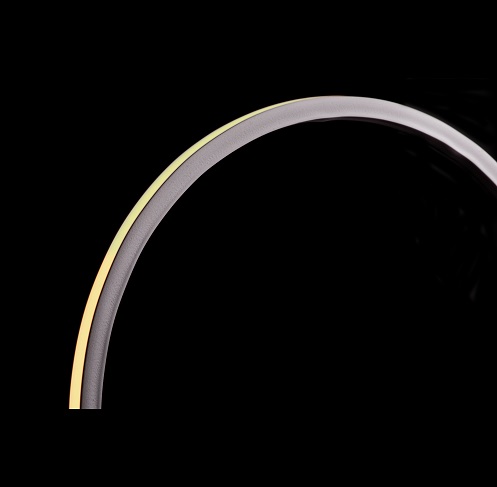

LD Flex.LEDStrip,24V,UWW ST-6M 75W
Product information "LD Flex.LEDStrip,24V,UWW ST-6M 75W"
- Flexible LED strip sealed in
- UV,chlorine,salt water and
- solvent-resistant white PVC
- for indoor and outdoor use
- single-colour
- 12.5 Watt,128 LED 475 Lumen per meter
- Maximum lengt per connestion 6 meters
- bending radius 6.5cm
- length of wire 30cm
- temperature range -20°C up to +45°C
- processing temperature +10°C uo to +45°C
- IP68 underwater 1m

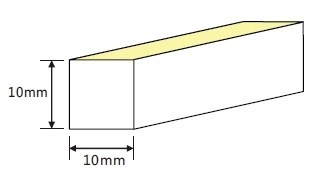

- width 10mm
- height 10mm
- Beamangle: 120°
- 24V DC
- Lifespan L70: >= 35,000 hours
Technical Data
| BAR code: | 4012094836331 |
|---|---|
| Width: | 10 mm |
| Height: | 10 mm |
| Length: | 6000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 2850 lm |
| Lumen per LED (lm): | 2,61 lm |
| Current: | 3125 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 182 |
| Cutting length in mm: | 38,5 mm |
| Power W/m: | 12,5 |
| Lumen per meter: | 475 |
| Lumen per watt: | 38 |
| IP protection rating: | 66 |
| Power: | 75 W |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 1092 |
| Gehaeuse code: | Kunststoff |
| Auslaufartikel: | Yes |
| L70: | 35000 |
| Ecodesign: | not assigned |
