CE
Disposal instructions according to 2012/19/EU
Light source not interchangeable
Parallel connection
Protection class III
RoHS
UV-resistant
Product number:
76079
LD Flex.LEDStrip,24V,Select 5M 60W
Product information "LD Flex.LEDStrip,24V,Select 5M 60W"
- Flexible LED Stripe sealed in UV-, chlorine-,
- salt water-, solvent- and heat-resistant special silicone
- for indoor- and outdoor use, IP68
- cuttable every 83.33 mm / 12 LEDs
- number of LEDs: 720
- LED pitch: 13.89 mm
- beam angle: 160°
- CRI: >80
- luminous flux per meter: 645 lm
- voltage: 24V DC
- power per Meter: 15 W
- lifetime L70B50: >= 36.000 h

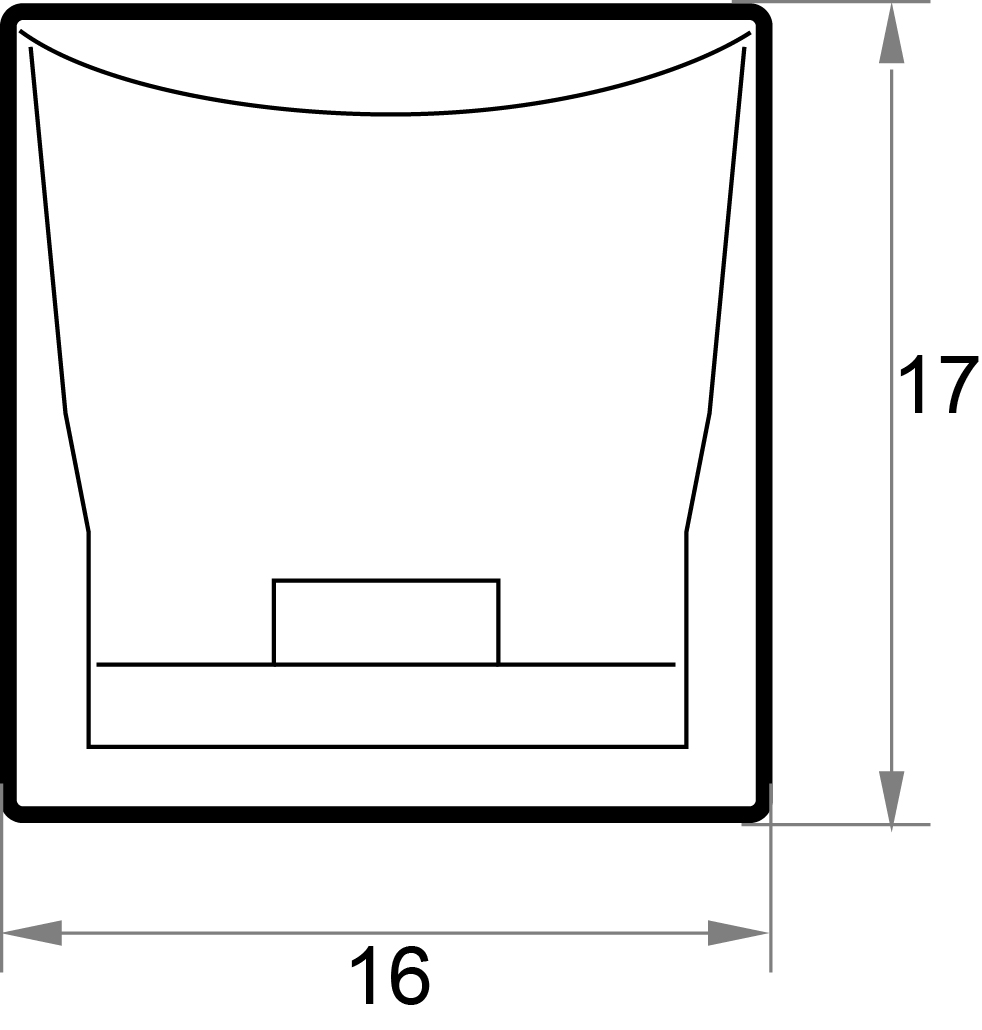

- LxWxH in mm: 5.000 x 16 x 17
- Temperature range: -40 to +55°C
- Processing temperature: +10 to +55°C
- Maximum length per connection: 10 meter
- vertical bending radius: 150 mm
Technical Data
| BAR code: | 4012094760797 |
|---|---|
| Width: | 16 mm |
| Height: | 17 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 3225 lm |
| Lumen per LED (lm): | 4,48 lm |
| Current: | 2500 mA |
| Temperature range: | -40 - 55 |
| LEDs per meter: | 144 |
| Cutting length in mm: | 83,33 mm |
| Power W/m: | 12 |
| Lumen per meter: | 645 |
| Lumen per watt: | 53,75 |
| IP protection rating: | 68 |
| Power: | 60 W |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | 1900-5700K tunable white |
| Leuchte: | including LED |
| Beam angle: | 160 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 720 |
| Gehaeuse code: | Kunststoff |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
| Psb: | 0,00 |
