Product number:
S76077

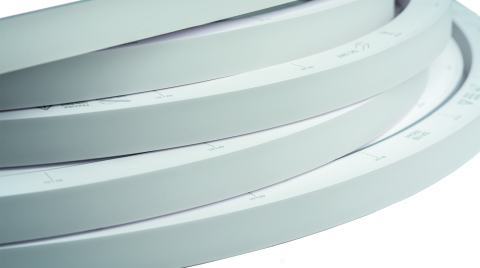

LD Flex.LEDStrip,24V,RGBW
Product information "LD Flex.LEDStrip,24V,RGBW"
- Flexible LED Stripe sealed in UV-, chlorine-,
- salt water-, solvent- and heat-resistant special silicone
- for indoor- and outdoor use, IP68

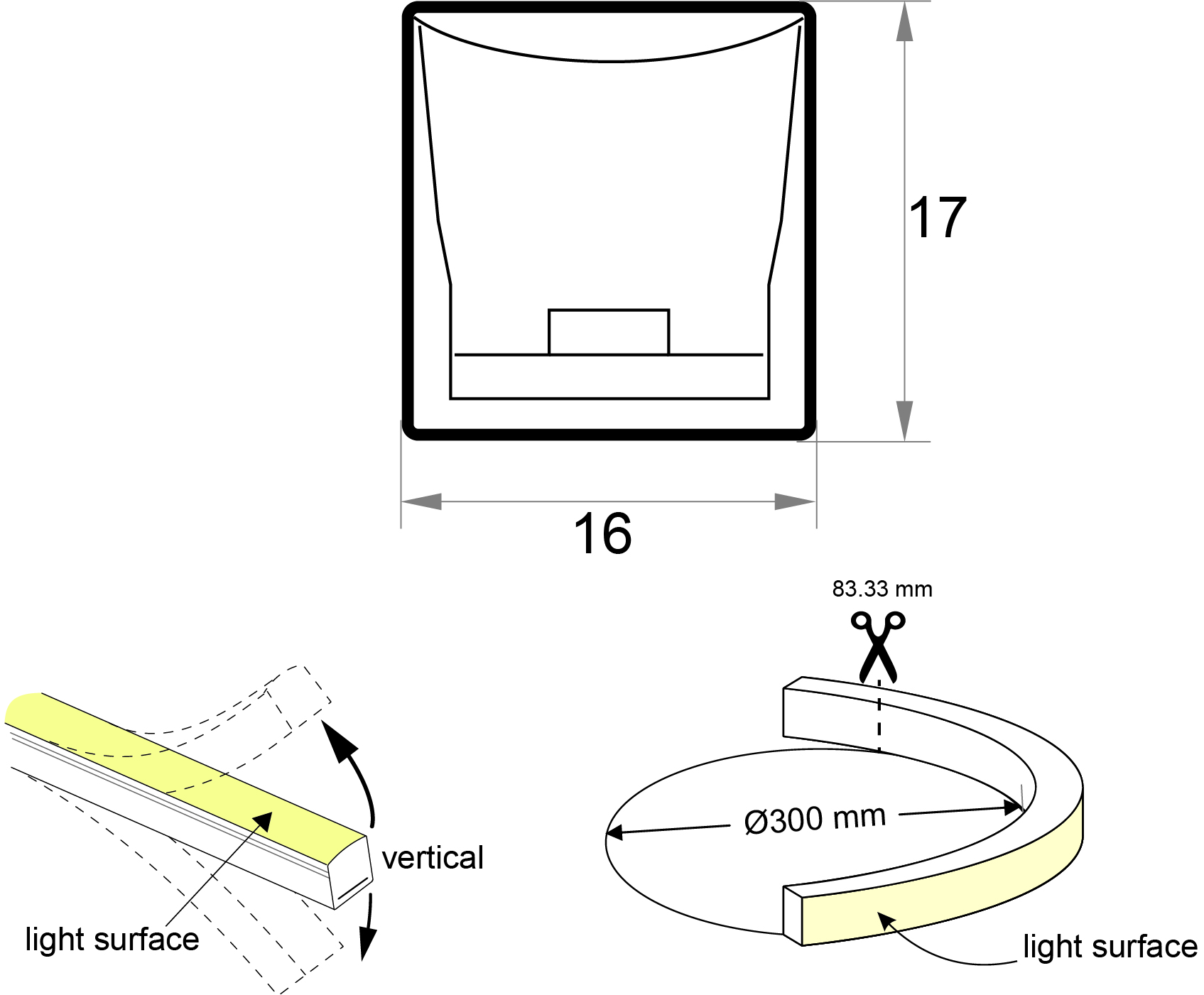

- cuttable every 83.33 mm / 7 LEDs
- number of LEDs per Meter: 84
- LED pitch: 11.91 mm
- beam angle: 160°
- CRI: >80
- luminous flux per meter: 450 lm
- voltage: 24V DC
- power per Meter: 15 W
- Lifespan L70B50: >= 36,000 h
- WxH in mm: 16 x 17
- Temperature range: -45 to +50°C
- Processing temperature: +10 to +50°C
- Maximum length per connection: 8 meter
- bending radius: 150 mm
- Attention: do not run all colours at same time under maximum load (max. 80%)
Technical Data
| BAR code: | 4012094160771 |
|---|---|
| Width: | 16 mm |
| Height: | 17 mm |
| Unit Code: | meter |
| Customer discount group code: | R2 |
| Lumen per LED (lm): | 5,35 lm |
| Temperature range: | -40 - 50 |
| LEDs per meter: | 84 |
| Cutting length in mm: | 83,33 mm |
| Power W/m: | 15 |
| Lumen per meter: | 450 |
| Lumen per watt: | 30 |
| IP protection rating: | 68 |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | RGBW 2700K |
| Leuchte: | including LED |
| Beam angle: | 160 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | containing product |
