CE
Disposal instructions according to 2012/19/EU
Light source not interchangeable
Parallel connection
Protection class III
RoHS
Product number:
76077

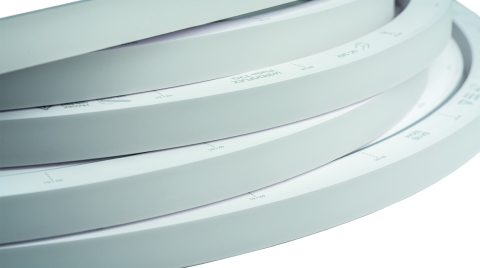

LD Flex.LEDStrip,24V,RGBW 5M 75W
Product information "LD Flex.LEDStrip,24V,RGBW 5M 75W"
- Flexible LED Stripe sealed in UV-, chlorine-,
- salt water-, solvent- and heat-resistant special silicone
- for indoor- and outdoor use, IP68
- Cuttable every 83.33 mm / 9 LEDs
- Amount of LEDs: 420
- LED pitch: 11.91 mm
- Beam angle: 160°
- CRI: >80
- Light flux per meter: 450 lm
- Voltage: 24V DC
- Power per Meter: 15 W
- Lifetime L70: >= 36.000 h
- LxWxH in mm: 5.000 x 16 x 17
- Temperature range: -40 to +50°C
- Processing temperature: +10 to +50°C
- Maximum length per connection: 8 meter
- Bending radius: 150 mm
- Easy Connection with solderless connector.
- Delivery contents: 5 meter roll, already with a feed connector,
- 300 mm cable and end cap
- Attention: do not run all colours at same time under maximum load (max. 80%)
Technical Data
| BAR code: | 4012094060774 |
|---|---|
| Width: | 16 mm |
| Height: | 17 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 2250 lm |
| Lumen per LED (lm): | 4,20 lm |
| Current: | 3125 mA |
| Temperature range: | -40 - 50 |
| LEDs per meter: | 84 |
| Cutting length in mm: | 83,33 mm |
| Power W/m: | 15 |
| Lumen per meter: | 450 |
| Lumen per watt: | 30 |
| IP protection rating: | 68 |
| Power: | 75 W |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | RGBW 2700K |
| Leuchte: | including LED |
| Beam angle: | 160 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 420 |
| L70: | 36000 |
| Ecodesign: | containing product |
