CE
Parallel connection
Protection class III
RoHS
Product number:
86056

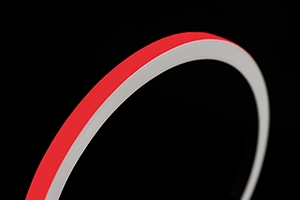

LD Flex.LEDStrip,24V,RGB 10M 110W
Product information "LD Flex.LEDStrip,24V,RGB 10M 110W"
- Vardaflex Top RGB IP68
- Flexible LED strip sealed in UV, chlorine salt water and solvent-resistant PVC,
- white, for indoor and outdoor use
- 11W, 72 LED, 176 lm per metre
- Cuttable every 8,33 cm or 6 LEDs, LED spacing: 13,9 mm
- Easy installation due to solder-free connectors.
- Maximum length per connection: 14 metres
- bending radius: 150 mm
- Scope of delivery: 10 rolls, with feed-in connectors
- provided (SU infection molded connector from the bottom)
- at each end
- Up to 14 metres installable without any interruption
- (feed-in on both sides upwards of 7 metres).
- Temperature range: -20 to +45°C
- Processing temperature: 0 - 45 °C
Technical Data
| BAR code: | 4012094860565 |
|---|---|
| Width: | 16 mm |
| Height: | 17 mm |
| Length: | 10000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 1760 lm |
| Lumen per LED (lm): | 2,44 lm |
| Current: | 4583 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 72 |
| Cutting length in mm: | 83,3 mm |
| IP protection rating: | 68 |
| Power: | 110 W |
| Catalog color code: | weiss |
| Led color code: | RGB |
| Leuchte: | including LED |
| Beam angle: | 160 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 720 |
| Gehaeuse code: | Kunststoff |
| Auslaufartikel: | Yes |
| Ecodesign: | not relevant |
