CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
REACH
RoHS
Very light - profile necessary
Product number:
81366
LD Flex.LEDStrip,24V,Innen,RGB+3000K
Product information "LD Flex.LEDStrip,24V,Innen,RGB+3000K"
- flexible LED Strip with self adhesive backside
- for indoor use, IP20

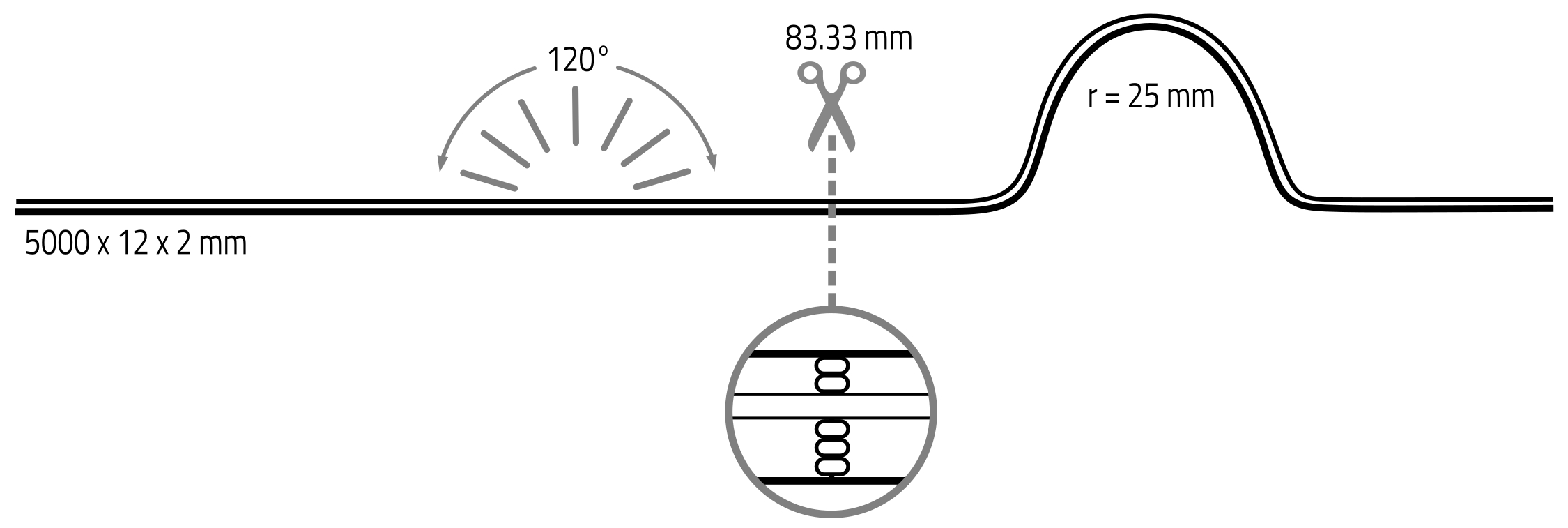

- can be seperated every 83.33 mm or 64 LEDs
- number of LEDs: 3840
- LED pitch: 1.3 mm
- beam angle: 120°
- CRI: >90
- luminous flux per meter: 60 lm
- voltage: 24 V DC
- power per meter: 15 W
- lifespan L70B50: >= 50,000 h
- LxWxH in mm: 5,000 x 12 x 2
- caution: Do not operate strip without aluminium profile
- and adequate ventilation.
- maximum length per connection: 5 metre. New connectors for greater length.
- delivery contents: 5 meter reel with 150 mm connecting cable
Technical Data
| BAR code: | 4012094813660 |
|---|---|
| Width: | 12 mm |
| Height: | 2 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 3000 lm |
| Lumen per LED (lm): | 0,78 lm |
| Current: | 3125 mA |
| Temperature range: | -20 - 40 |
| LEDs per meter: | 768 |
| Cutting length in mm: | 83,33 mm |
| Power W/m: | 15 |
| Lumen per meter: | 600 |
| Lumen per watt: | 40 |
| IP protection rating: | 20 |
| Power: | 75 W |
| Energy efficiency class: | EEK-Label_G |
| CRI: | 90 |
| Led color code: | RGBW 3000K |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 3840 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
