CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
REACH
RoHS
Product number:
71318
LD Flex.LEDStrip,24V,Innen,4000K CRI95
Product information "LD Flex.LEDStrip,24V,Innen,4000K CRI95"
- flexible LED Strip with self adhesive backside,
- for indoor use.

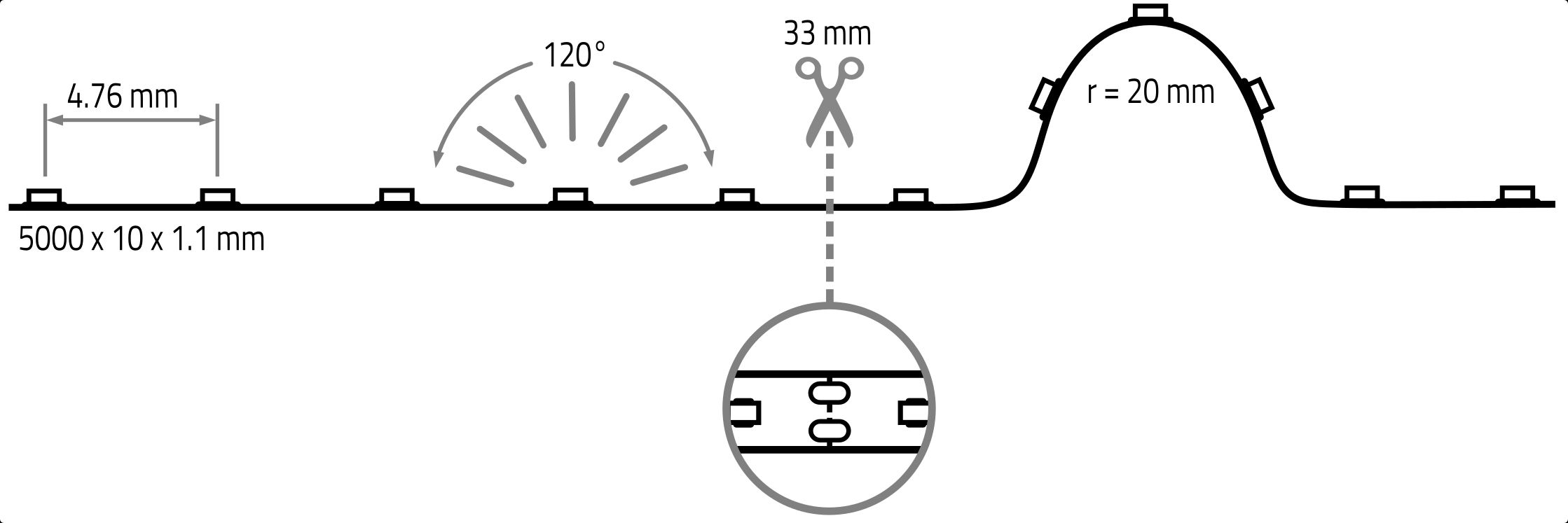

- Can be seperated every 33 mm or 7 LEDs
- Number of LEDs: 1050
- LED pitch: 4.76 mm
- beam angle: 120°
- CRI: >95
- Lumen per meter: 645 lm
- Voltage: 24V DC
- Power per meter: 6 W
- Lifetime L70B50: >= 50,000 h
- energy efficiency class: F
- LxWxH in mm: 5,000 x 10 x 1.1
- Maximum length per connection: 8 meter. New connectors for greater length.
- Delivery contents: 5 meter roll with 300 mm connection cable
Technical Data
| BAR code: | 4012094713182 |
|---|---|
| Width: | 10 mm |
| Height: | 1 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 3225 lm |
| Lumen per LED (lm): | 3,07 lm |
| Current: | 1250 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 210 |
| Cutting length in mm: | 33 mm |
| Lumen per meter: | 645 |
| Lumen per watt: | 107,5 |
| IP protection rating: | 20 |
| Power: | 30 W |
| Energy efficiency class: | EEK-Label_F |
| CRI: | 95 |
| Catalog color code: | weiss |
| Led color code: | ca. 4000K neutralweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 1050 |
| Re skus: | 70535,70536 |
| L70: | 36000 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
