Product number:
86335-34375
LD Flex.LEDStrip,24V,Innen,3000K
Product information "LD Flex.LEDStrip,24V,Innen,3000K"
- flexible LED Strip with self adhesive backside
- for indoor use, IP20

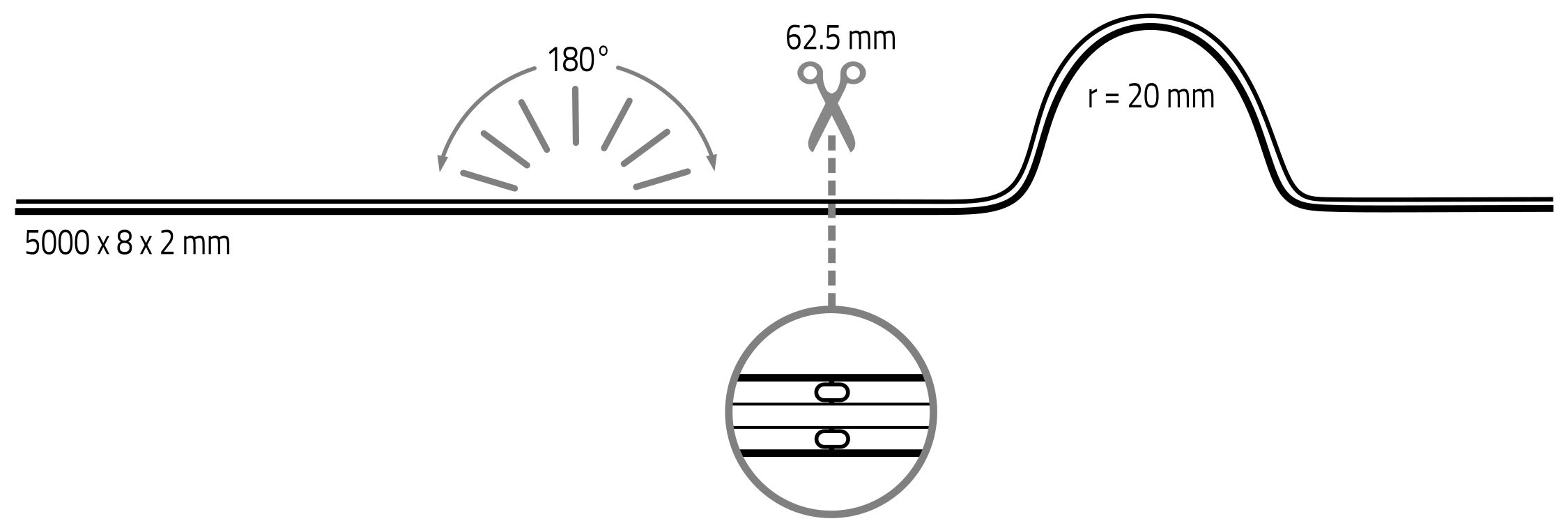

- Can be seperated every 62,5 mm or 32 LEDs
- Number of LEDs: 1760
- LED pitch: 1.95 mm
- Beam angle: 180°
- CRI: >90
- Lumen per meter: 961 lm
- Lumen: 3303 lm
- Voltage: 24 V DC
- Power per meter: 10 W
- Power: 34.38 W
- Lifespan L70B50: >= 67.000 h
- energy efficiency class: F
- LxWxH in mm: 3437.5 x 8 x 2
- Maximum length per connection: 5 metre. New connectors for greater length.
- Delivery contents: 3.4375 meter reel with 500 mm connecting cable
Technical Data
| BAR code: | 4251835734370 |
|---|---|
| Width: | 8 mm |
| Height: | 2 mm |
| Length: | 3437 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 3303 lm |
| Lumen per LED (lm): | 1,88 lm |
| Current: | 1435 mA |
| Temperature range: | -25 - 60 |
| LEDs per meter: | 512 |
| Cutting length in mm: | 62,5 mm |
| Power W/m: | 10 |
| Lumen per meter: | 961 |
| Lumen per watt: | 96,1 |
| IP protection rating: | 20 |
| Power: | 34,38 W |
| Energy efficiency class: | EEK-Label_F |
| CRI: | 90 |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 180 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 1760 |
| L70: | 50000 |
| LebensdauerL70B50: | 67000 |
| Ecodesign: | light source |
