Disposal instructions according to 2012/19/EU
Interseroh
Only suitable for indoor installations
Parallel connection
Protection class III
REACH
RoHS
Product number:
81399
LD Flex.LEDStrip,24V,Innen,2800-6000K
Product information "LD Flex.LEDStrip,24V,Innen,2800-6000K"
- flexible LED Strip with self adhesive backside
- for indoor use, IP20

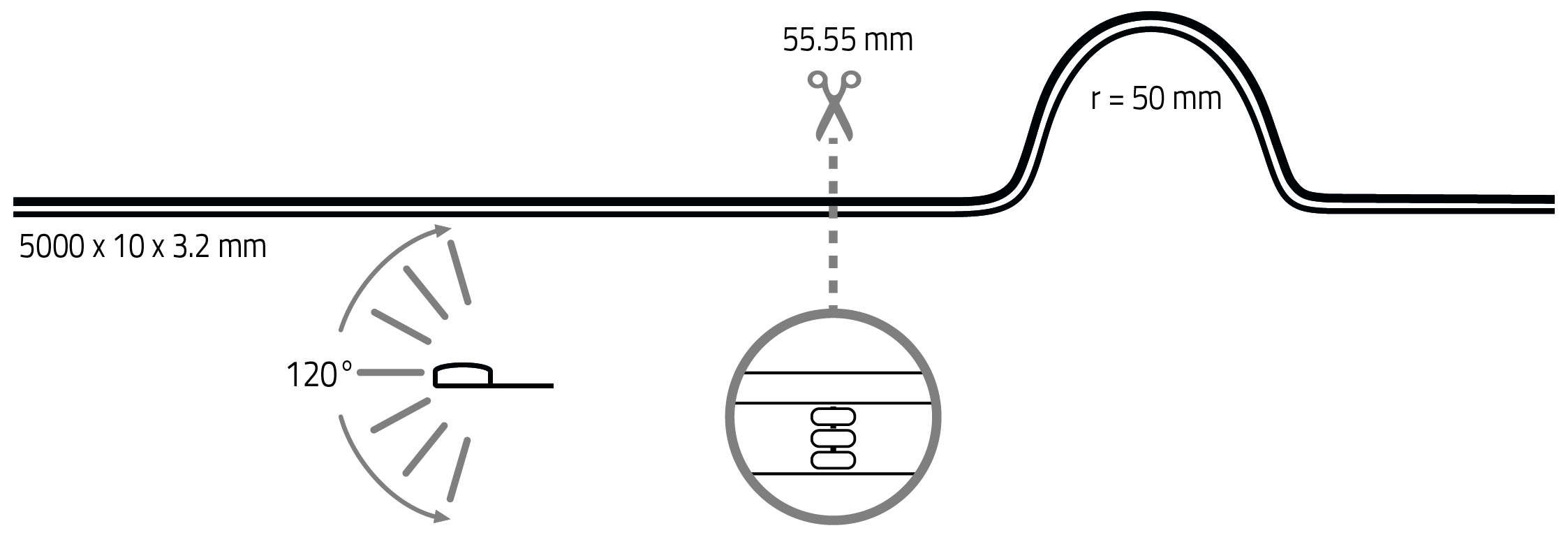

- can be seperated every 55.55 mm or 21 LEDs
- number of LEDs: 1890
- LED pitch: 2.65 mm
- beam angle: 120° to one side
- CRI: 90
- luminous flux per meter at 2800K: 245 lm
- luminous flux per meter at 6000K: 245 lm
- luminous flux per meter total: 485 lm
- voltage: 24 V DC
- power per meter: 12 W
- lifespan L70B50: >= 42,000 h
- LxWxH in mm: 5,000 x 10 x 3.2
- Maximum length per connection: 5 metre. New connectors for greater length.
- Delivery contents: 5 meter reel with 300 mm connecting cable
Technical Data
| BAR code: | 4012094813998 |
|---|---|
| Width: | 10 mm |
| Height: | 3 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 2425 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 2500 mA |
| Temperature range: | -20 - 45 |
| Power W/m: | 12 |
| Lumen per meter: | 485 |
| Lumen per watt: | 48,5 |
| Power: | 60 W |
| CRI: | 90 |
| Led color code: | 2800-6000K tunable white |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| L70: | 54000 |
| LebensdauerL70B50: | 42000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
