CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Product number:
86437
LD Flex.LEDStrip,24V,Innen,2700K
€20.00

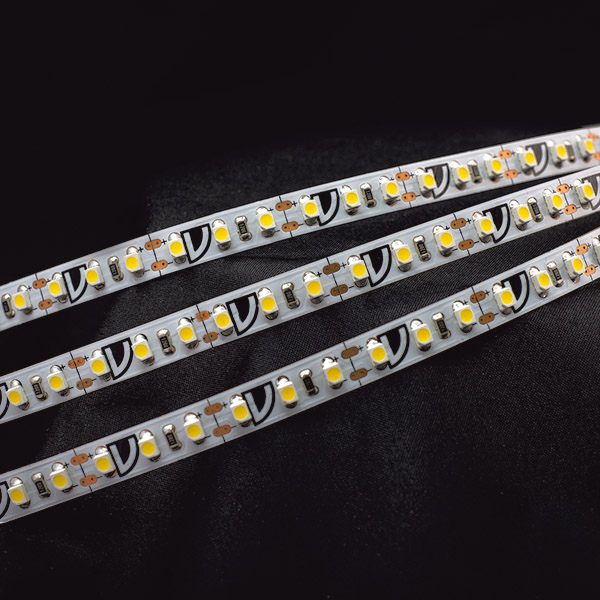

Product information "LD Flex.LEDStrip,24V,Innen,2700K"
- flexible LED Strip with self adhesive backside,
- for indoor use.
- Can be seperated every 5 cm or 6 LEDs
- Number of LEDs: 600
- LED pitch: 8.33 mm
- Beam angle: 120°
- CRI: >90
- Lumen per meter: 744 lm
- Voltage: 24V DC
- Power per meter: 9,6 W
- Lifespan L70B50: >= 54,000 h
- energy efficiency class: A
- LxWxH in mm: 5,000 x 8 x 2.2
- Easy installation with solderless connector (optional).
- Maximum length per connection: 10 meter. New connectors for greater length.
- Delivery contents: 5 meter roll, 1 connector, 1 direct connector
Technical Data
| BAR code: | 4012094864372 |
|---|---|
| Width: | 8 mm |
| Height: | 2 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 3720 lm |
| Lumen per LED (lm): | 6,20 lm |
| Current: | 2000 mA |
| Temperature range: | -20 - 40 |
| LEDs per meter: | 120 |
| Cutting length in mm: | 50 mm |
| Power W/m: | 9,6 |
| Lumen per meter: | 744 |
| Lumen per watt: | 77,5 |
| IP protection rating: | 20 |
| Power: | 48 W |
| Energy efficiency class: | EEK-Label_G |
| CRI: | 90 |
| Catalog color code: | ohne |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 600 |
| Re skus: | 68405,68415,68490,68897,68898,80474,85476 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| LebensdauerL70B50: | 54000 |
| Ecodesign: | light source |
