CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
REACH
RoHS
Very light - profile necessary
Product number:
71325
LD Flex.LEDStrip,24V,Innen,2700K CRI90
Product information "LD Flex.LEDStrip,24V,Innen,2700K CRI90"
- flexible LED Strip with self adhesive backside,
- for indoor use, IP20

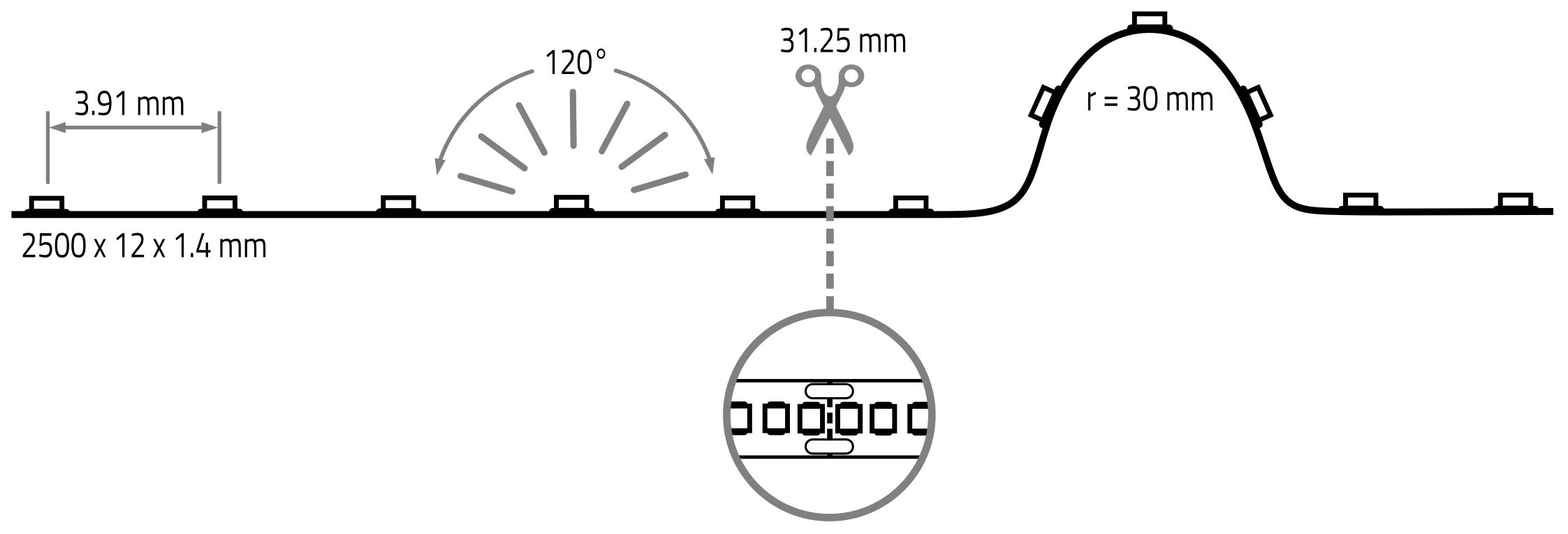

- can be seperated every 31.25 mm or 8 LEDs
- number of LEDs: 640
- LED pitch: 3,91 mm
- beam angle: 120°
- CRI: >90
- luminous flux per meter: 3867 lm
- voltage: 24 V DC
- power per meter: 34 W
- lifespan L70B50: >= 36,000 h
- energy efficiency class: E
- LxWxH in mm: 2.500 x 12 x 1.4
- Caution: Do not operate strip without aluminium profile
- and adequate ventilation.
- Maximum length per connection: 2.5 meter. New connectors for greater length.
- Delivery contents: 2.5 meter roll with 120 mm connection cable
Technical Data
| BAR code: | 4012094713250 |
|---|---|
| Width: | 12 mm |
| Height: | 1 mm |
| Length: | 2500 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 9668 lm |
| Lumen per LED (lm): | 15,11 lm |
| Current: | 3541 mA |
| Temperature range: | -25 - 40 |
| LEDs per meter: | 256 |
| Cutting length in mm: | 31,25 mm |
| Power W/m: | 34 |
| Lumen per meter: | 3867 |
| Lumen per watt: | 113,74 |
| IP protection rating: | 20 |
| Power: | 85 W |
| Energy efficiency class: | EEK-Label_E |
| CRI: | 90 |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 640 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
