Product number:
81135
LD Flex.LEDStrip,24V,Innen,2700K 60°
Product information "LD Flex.LEDStrip,24V,Innen,2700K 60°"
- flexible LED Strip with self adhesive backside,
- for indoor use, IP20

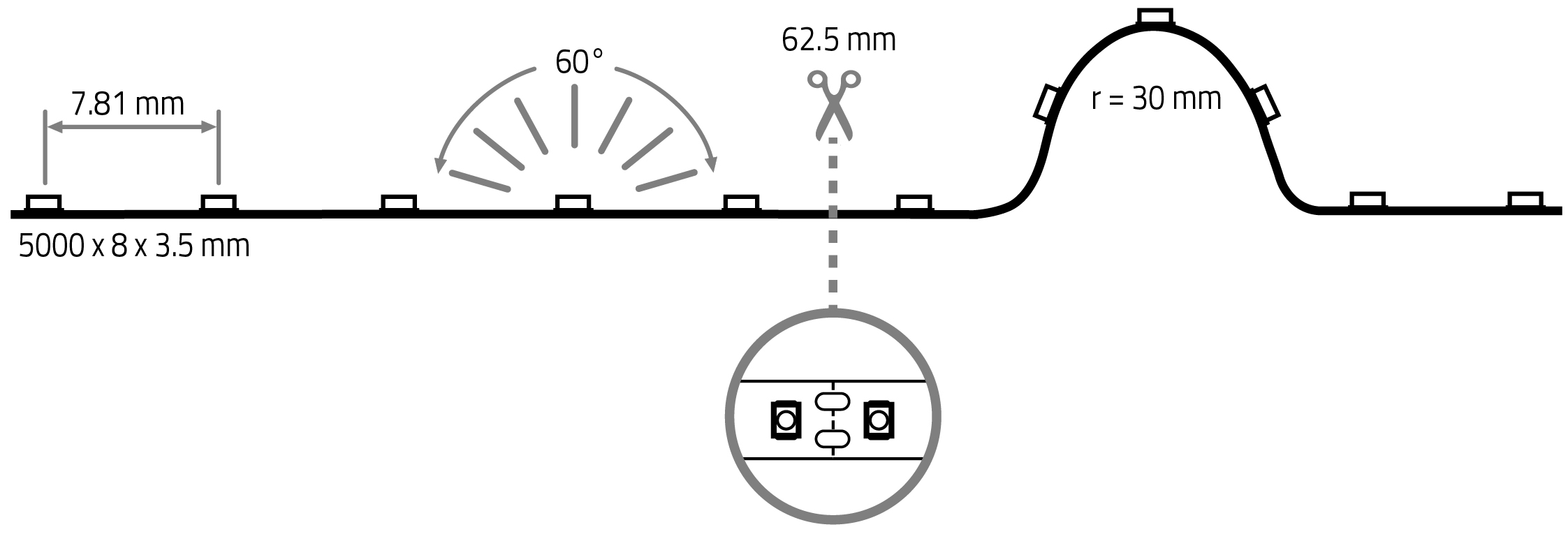

- can be seperated every 62.5 mm or 8 LEDs
- number of LEDs: 640
- LED pitch: 7.81 mm
- beam angle: 60°
- CRI: >80
- luminous flux per meter: 747 lm
- voltage: 24 V DC
- power per meter: 9.2 W
- lifespan L70: >= 36,000 h
- energy efficiency class: F
- LxWxH in mm: 5.000 x 8 x 3.5
- Maximum length per connection: 5 metre. New connectors for greater length.
- Delivery contents: 5 metre reel with 300 mm connecting cable
Technical Data
| BAR code: | 4012094811352 |
|---|---|
| Width: | 8 mm |
| Height: | 3 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 3735 lm |
| Lumen per LED (lm): | 5,84 lm |
| Current: | 1916 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 128 |
| Cutting length in mm: | 62,5 mm |
| Power W/m: | 9,2 |
| Lumen per meter: | 747 |
| Lumen per watt: | 81,2 |
| IP protection rating: | 20 |
| Power: | 46 W |
| Energy efficiency class: | EEK-Label_F |
| CRI: | 80 |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 60 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 640 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
