CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
REACH
RoHS
Very light - profile necessary
Product number:
81369
LD Flex.LEDStrip,24V,Innen,2700+6500K
Product information "LD Flex.LEDStrip,24V,Innen,2700+6500K"
- flexible LED Strip with self adhesive backside
- for indoor use, IP20

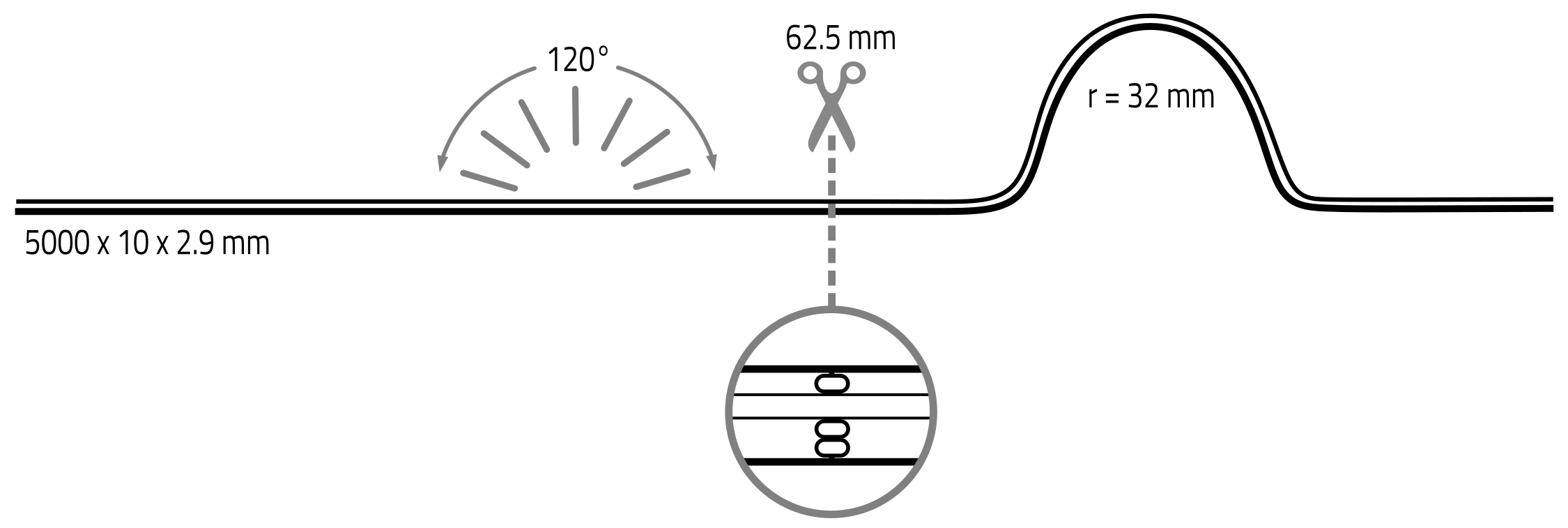

- can be seperated every 62.5 mm or 32 LEDs
- number of LEDs: 2560
- LED pitch: 1.95 mm
- beam angle: 120°
- CRI: >90
- luminous flux per meter: 1246 lm
- voltage: 24 V DC
- power per meter: 15 W
- lifespan L70B50: >= 36,000 h
- energy efficiency class: F
- LxWxH in mm: 5,000 x 10 x 2.9
- Maximum length per connection: 5 metre. New connectors for greater length.
- Delivery contents: 5 meter reel with 150 mm connecting cable
Technical Data
| BAR code: | 4012094813691 |
|---|---|
| Width: | 10 mm |
| Height: | 2 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 6230 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 3125 mA |
| Temperature range: | -20 - 40 |
| LEDs per meter: | 512 |
| Cutting length in mm: | 62,5 mm |
| Power W/m: | 15 |
| Lumen per meter: | 1246 |
| Lumen per watt: | 83,07 |
| IP protection rating: | 20 |
| Power: | 75 W |
| Energy efficiency class: | EEK-Label_F |
| CRI: | 90 |
| Led color code: | 2700-6500K tunable white |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 2560 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
