CE
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Product number:
81607
LD Flex.LEDStrip,24V,Innen,2400K CRI90
Product information "LD Flex.LEDStrip,24V,Innen,2400K CRI90"
- flexible LED Strip with self adhesive backside,
- for indoor use, IP20

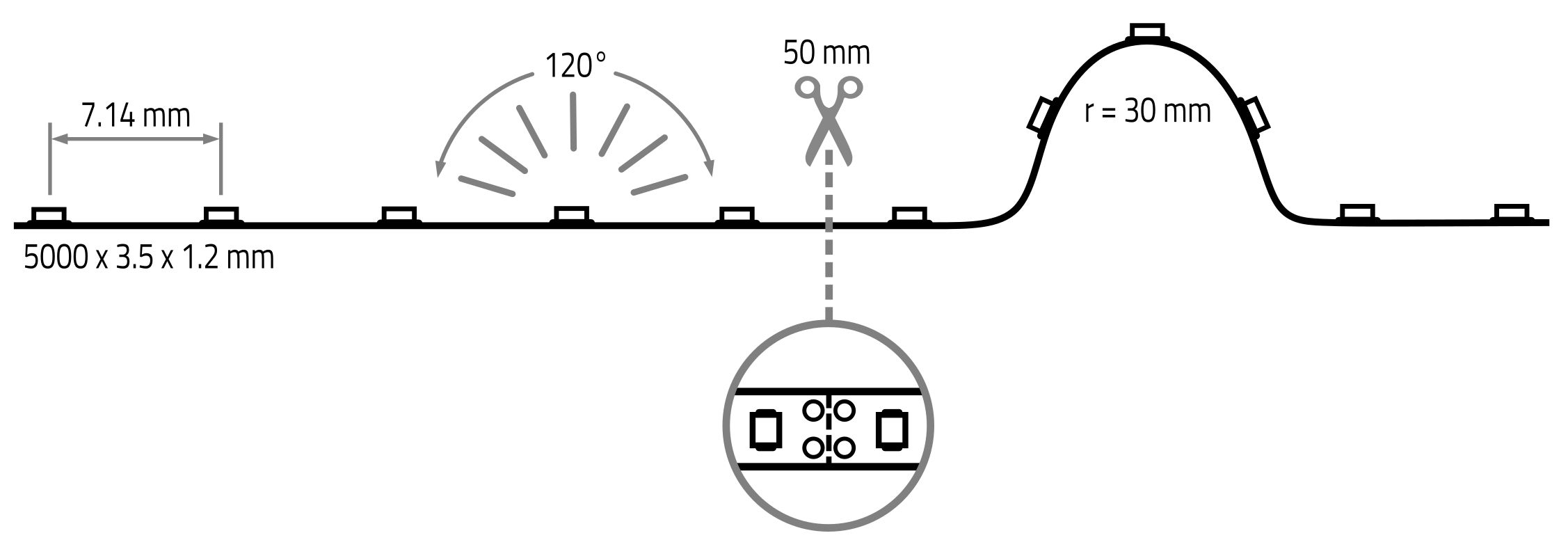

- Can be seperated every 50 mm or 7 LEDs
- Number of LEDs: 700
- LED pitch: 7.14 mm
- beam angle: 120°
- CRI: >90
- Lumen per meter: 434 lm
- Voltage: 24 V DC
- Power per meter: 5 W
- Lifetime L70B50: >= 54,000 h
- energy effiiciency class: G
- LxWxH in mm: 5,000 x 3.5 x 1.2
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter reel with 300 mm connecting cable
Technical Data
| BAR code: | 4012094816074 |
|---|---|
| Width: | 3 mm |
| Height: | 1 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 2170 lm |
| Lumen per LED (lm): | 3,10 lm |
| Current: | 1042 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 140 |
| Cutting length in mm: | 50 mm |
| Power W/m: | 5 |
| Lumen per meter: | 434 |
| Lumen per watt: | 86,8 |
| IP protection rating: | 20 |
| Power: | 25 W |
| Energy efficiency class: | EEK-Label_G |
| CRI: | 90 |
| Led color code: | ca. 2400K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 700 |
| L70: | 54000 |
| LebensdauerL70B50: | 54000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
