Product number:
84343
LD Flex.LEDStrip,24V,Innen,2400K CRI80
Product information "LD Flex.LEDStrip,24V,Innen,2400K CRI80"
- flexible LED Strip with self adhesive backside,
- for indoor use, IP20

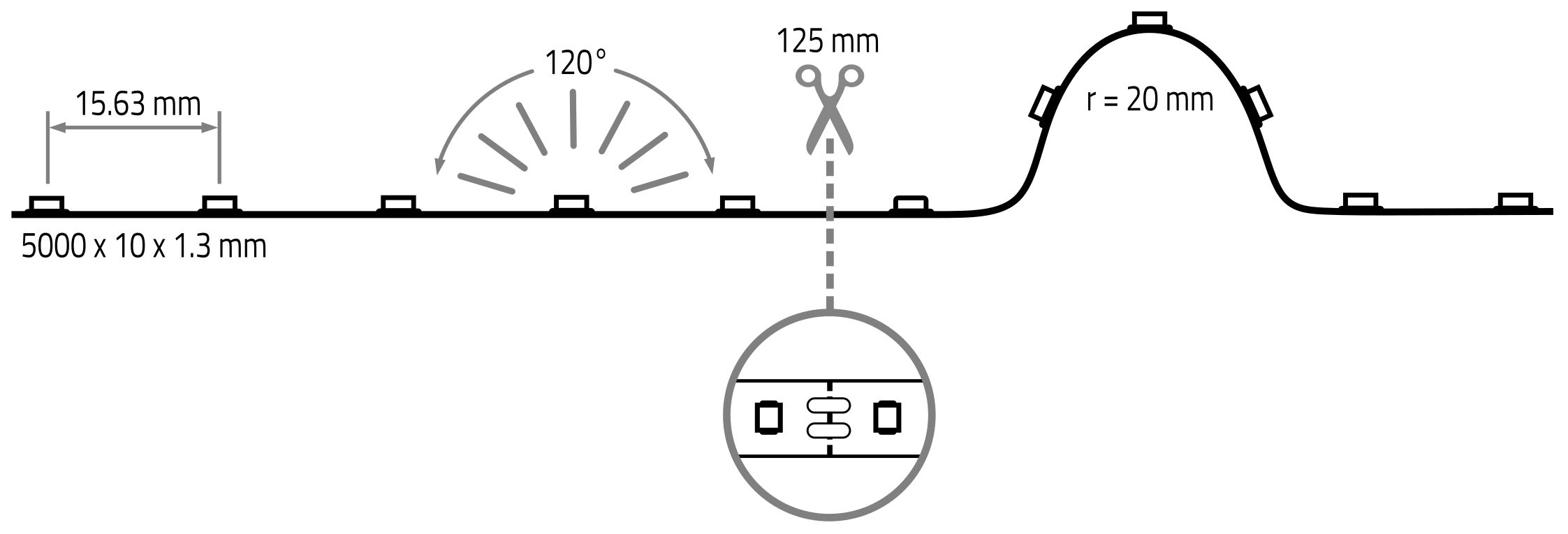

- can be seperated every 125 mm or 8 LEDs
- number of LEDs: 320
- LED pitch: 15.63 mm
- beam angle: 120°
- CRI: >80
- luminous flux per meter: 875 lm
- voltage: 24 V DC
- power per meter: 6.5 W
- lifespan L70B50: >= 60,000 h
- energy efficiency class: E
- LxWxH in mm: 5,000 x 10 x 1.3
- Easy installation with solderless connector (optional).
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter reel with 300 mm connecting cable
Technical Data
| BAR code: | 4012094843438 |
|---|---|
| Width: | 10 mm |
| Height: | 1 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 4375 lm |
| Lumen per LED (lm): | 13,67 lm |
| Current: | 1354 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 64 |
| Cutting length in mm: | 125 mm |
| Power W/m: | 6,5 |
| Lumen per meter: | 875 |
| Lumen per watt: | 134,62 |
| IP protection rating: | 20 |
| Power: | 32,5 W |
| Energy efficiency class: | EEK-Label_E |
| CRI: | 80 |
| Led color code: | ca. 2400K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 320 |
| LebensdauerL70B50: | 60000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
