CE
Disposal instructions according to 2012/19/EU
Parallel connection
Protection class III
REACH
RoHS
Product number:
81465-1125
LD Flex.LEDStrip,24V,IP65,3000K CRI80
Product information "LD Flex.LEDStrip,24V,IP65,3000K CRI80"
- flexible LED-strip with self adhesive backside,
- for indoor and outdoor use, IP65

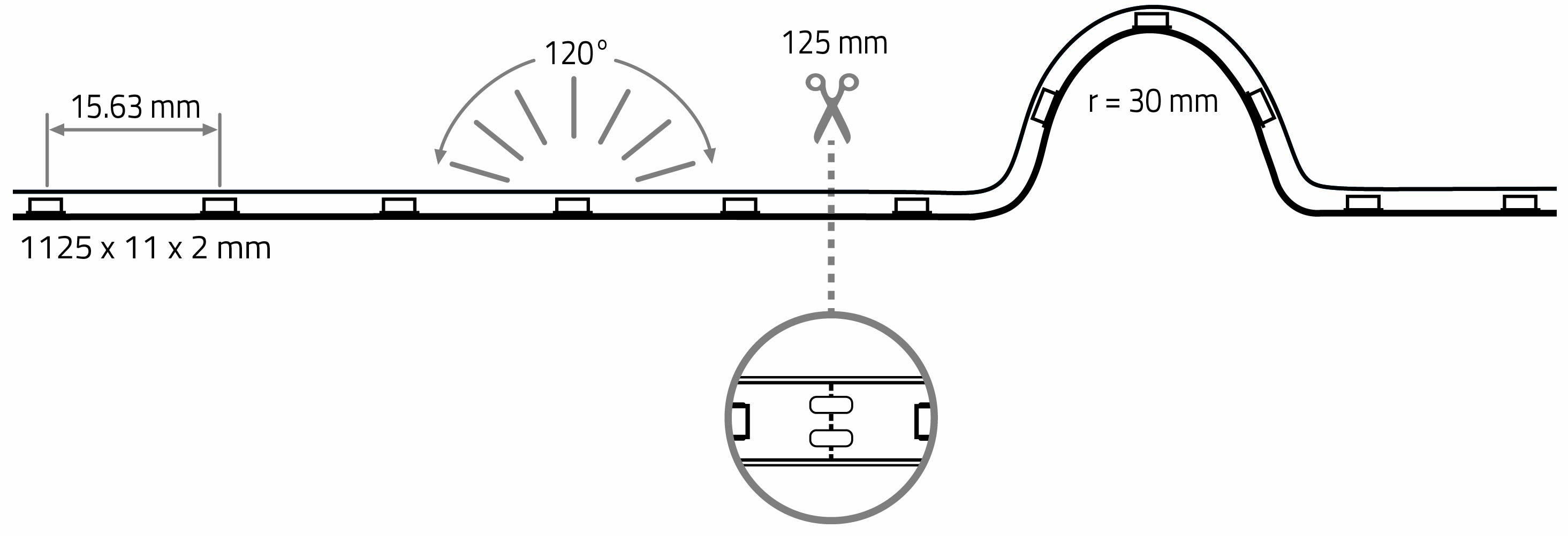

- can be seperated every 125 mm or 8 LEDs
- number of LEDs: 72
- LED pitch: 15.63 mm
- beam angle: 120°
- CRI: >80
- luminous flux per meter: 1080 lm
- input: 24 V DC
- power per meter: 6.4 W
- lifetime L70B50: >= 60,000 h
- energy efficiency class: C
- LxWxH in mm: 1,125 x 11 x 2
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter roll with 300 mm connecting cable
Technical Data
| BAR code: | 4012094004655 |
|---|---|
| Width: | 11 mm |
| Height: | 2 mm |
| Length: | 1125 mm |
| Unit Code: | piece |
| Lumen per fixture (lm): | 1215 lm |
| Lumen per LED (lm): | 16,88 lm |
| Current: | 300 mA |
| Temperature range: | -10 - 55 |
| LEDs per meter: | 64 |
| Cutting length in mm: | 125 mm |
| Power W/m: | 6,4 |
| Lumen per meter: | 1080 |
| Lumen per watt: | 168,75 |
| IP protection rating: | 65 |
| Power: | 7,2 W |
| Energy efficiency class: | EEK-Label_C |
| CRI: | 80 |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 72 |
| LebensdauerL70B50: | 60000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
