Product number:
86443
LD Flex.LEDStrip,24V,IP65,2400K
Product information "LD Flex.LEDStrip,24V,IP65,2400K"
- flexible LED-strip with self adhesive backside,
- for indoor and outdoor use, IP65
- uv-resistant

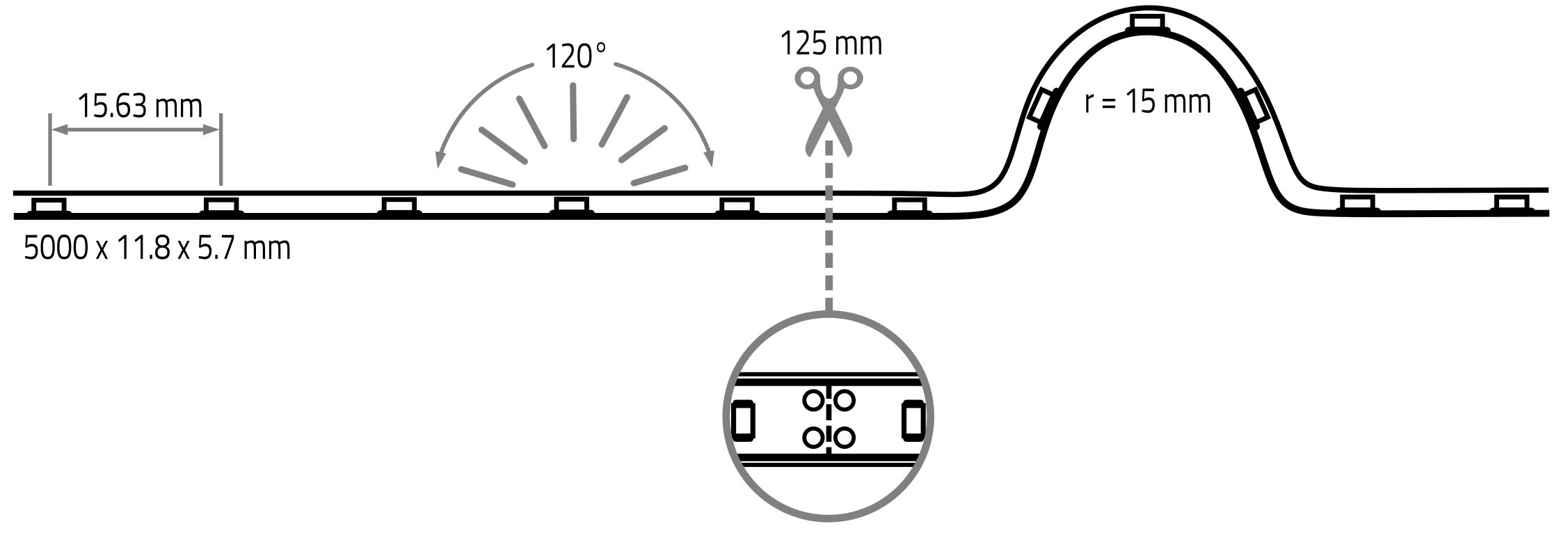

- can be seperated every 125 mm or 8 LEDs
- number of LEDs: 320
- LED pitch: 15.63 mm
- beam angle: 120°
- CRI: >80
- luminous flux per meter: 1550 lm
- input: 24V DC
- power per meter: 11.5 W
- lifetime L70B50: >= 67,000 h
- energy efficiency class: E
- LxWxH in mm: 5,000 x 11.8 x 5.7
- Maximum length per connection: 10 meter. New connectors for greater length.
- scope of delivery: 5 meter reel with 150 mm connecting cable and plug/socket at
- each end, 1x socket with 150 mm connection cable, 1x plug as end cap,
- 2x silicone cap with cable feed-through, 2x silicone cap closed,
- 20x silicone fixing brackets
Technical Data
| BAR code: | 4012094864433 |
|---|---|
| Width: | 11 mm |
| Height: | 5 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 7750 lm |
| Lumen per LED (lm): | 24,22 lm |
| Current: | 2395 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 64 |
| Cutting length in mm: | 125 mm |
| Power W/m: | 11,5 |
| Lumen per meter: | 1550 |
| Lumen per watt: | 134,78 |
| IP protection rating: | 65 |
| Power: | 57,5 W |
| CRI: | 80 |
| Led color code: | ca. 2400K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 320 |
| Gehaeuse code: | Kunststoff |
| LebensdauerL70B50: | 67000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
