CE
Disposal instructions according to 2012/19/EU
Parallel connection
Protection class III
REACH
RoHS
Product number:
81216
LD Flex.LEDStrip,24V,14W,IP67,RGBW-30K
Product information "LD Flex.LEDStrip,24V,14W,IP67,RGBW-30K"
- Flexible LED strip moulded in silicone
- and self-adhesive backside,
- for indoor and outdoor use, IP67

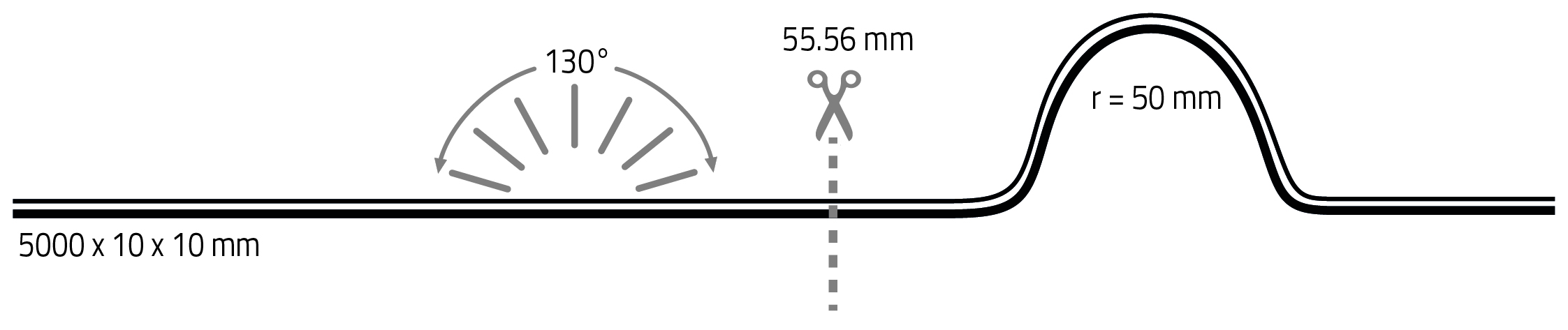

- cuttable every 55.56 mm or 14 LEDs
- number of LEDs: 1260
- LED pitch: 1.59 mm
- beam angle: 130°
- CRI: >80
- luminous flux per meter: 990 lm
- luminous flux per meter 3000K: 680 lm
- power per meter: 14 W
- energy efficiency class: F
- lifespan L70B50: >= 54,000 h
- LxWxH in mm: 5,000 x 10 x 10
- Maximum length per connection: 5 meter
- New connection for greater length.
- Scope of delivery: 5 meter roll with 300 mm connection cable, 2x end cap, 2x feed cap
Technical Data
| BAR code: | 4251835712163 |
|---|---|
| Width: | 10 mm |
| Height: | 10 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 4950 lm |
| Lumen per LED (lm): | 7,86 lm |
| Current: | 2916 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 252 |
| Cutting length in mm: | 55,56 mm |
| Power W/m: | 14 |
| Lumen per meter: | 990 |
| Lumen per watt: | 70,71 |
| IP protection rating: | 67 |
| Power: | 70 W |
| Energy efficiency class: | EEK-Label_F |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | RGBW 3000K |
| Leuchte: | including LED |
| Beam angle: | 130 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 1260 |
| Gehaeuse code: | Kunststoff |
| LebensdauerL70B50: | 54000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
| Service life L90B10: | 25000 |
