CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Very light - profile necessary
Product number:
36219

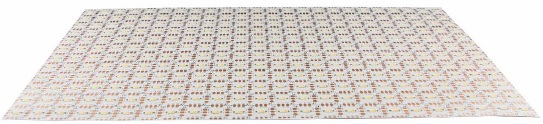

LD Flex.LEDSheet,24V 6300-2500K CRI95
Product information "LD Flex.LEDSheet,24V 6300-2500K CRI95"
- with self-adhesive backside,
- for indoor use, IP20
- can be seperated every 20 x 20 mm or 2 LEDs
- number of LEDs: 576
- LED pitch: 20 mm
- min. bending diameter: 30 mm
- beam angle: 120°
- CRI: >95
- luminous flux: 12000 lm
- voltage: 24V DC
- power: 120 W
- power per LED: 0.20 W
- lifespan L70B50: >= 36.000 h
- LxWxH in mm: 480 x 240 x 6.5
- Maximum amount per connection: 1 x VARDAflex Wallpaper
- Delivery contents: 1x flexible circuit board, 2x connector,
- 2x flexible connector
Technical Data
| BAR code: | 4012094362199 |
|---|---|
| Width: | 240 mm |
| Height: | 6 mm |
| Length: | 480 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 12000 lm |
| Lumen per LED (lm): | 20,83 lm |
| Current: | 5000 mA |
| Temperature range: | -20 - 45 |
| Cutting length in mm: | 20 mm |
| Lumen per watt: | 100 |
| IP protection rating: | 20 |
| Power: | 120 W |
| CRI: | 95 |
| Led color code: | 2700-6500K tunable white |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 576 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | not assigned |
