CE
Disposal instructions according to 2012/19/EU
Light source not interchangeable
Parallel connection
Protection class III
RoHS
UV-resistant
Product number:
86079

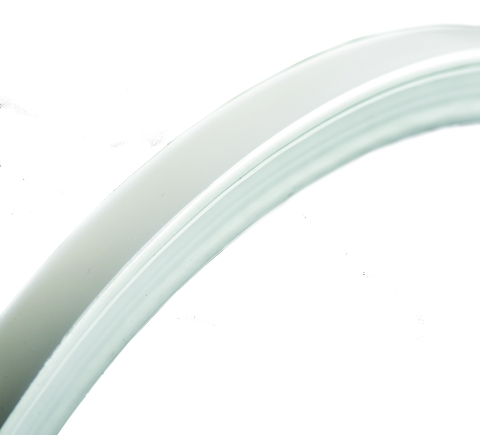

LD Flex.LED Strip,24V,UWW-W 10M
Product information "LD Flex.LED Strip,24V,UWW-W 10M"
- Flexible LED Stripe sealed in UV-, chlorine-,
- salt water- and solvent resistant white PVC
- for indoor- and outdoor use
- Cuttable every 83.33 mm / 12 LEDs
- Amount of LEDs: 1440
- LED pitch: 6.94 mm
- Beam angle: 160°
- CRI: >70
- Light flux per meter: 360 lm
- Voltage: 24V DC
- Power per Meter: 12 W
- Lifetime L70: >= 36.000 h
- LxWxH in mm: 10.000 x 16 x 17
- Temperature range: -20 to +45°C
- Processing temperature: +10 to +45°C
- Maximum length per connection: 10 meter
- bending radius: 150 mm
- Easy Connection with solderless connector.
- Delivery contents: 10 meter roll, already with a feed connector
- and end cap
Technical Data
| BAR code: | 4012094860794 |
|---|---|

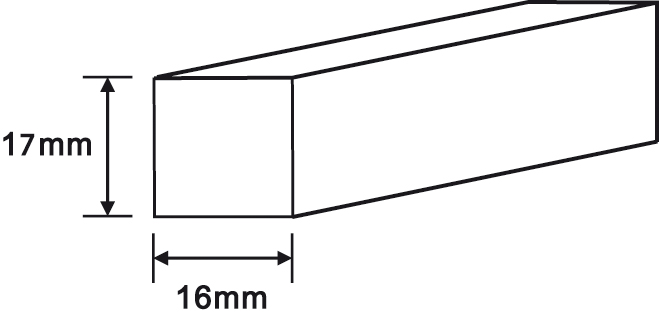

| Width: | 16 mm |
| Height: | 17 mm |
| Length: | 10000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 3600 lm |
| Lumen per LED (lm): | 2,50 lm |
| Current: | 5000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 144 |
| Cutting length in mm: | 83,33 mm |
| Power W/m: | 12 |
| Lumen per meter: | 360 |
| Lumen per watt: | 30 |
| IP protection rating: | 68 |
| Power: | 120 W |
| CRI: | 70 |
| Catalog color code: | weiss |
| Led color code: | 1900-5700K tunable white |
| Leuchte: | including LED |
| Beam angle: | 160 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 1440 |
| Gehaeuse code: | Kunststoff |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| Ecodesign: | containing product |
