CE
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Very light - profile necessary
Product number:
74856
LD Flex.LED-Strip,24V,Innen,RGB
Product information "LD Flex.LED-Strip,24V,Innen,RGB"
- flexible LED Strip with self adhesive backside,
- for indoor use.

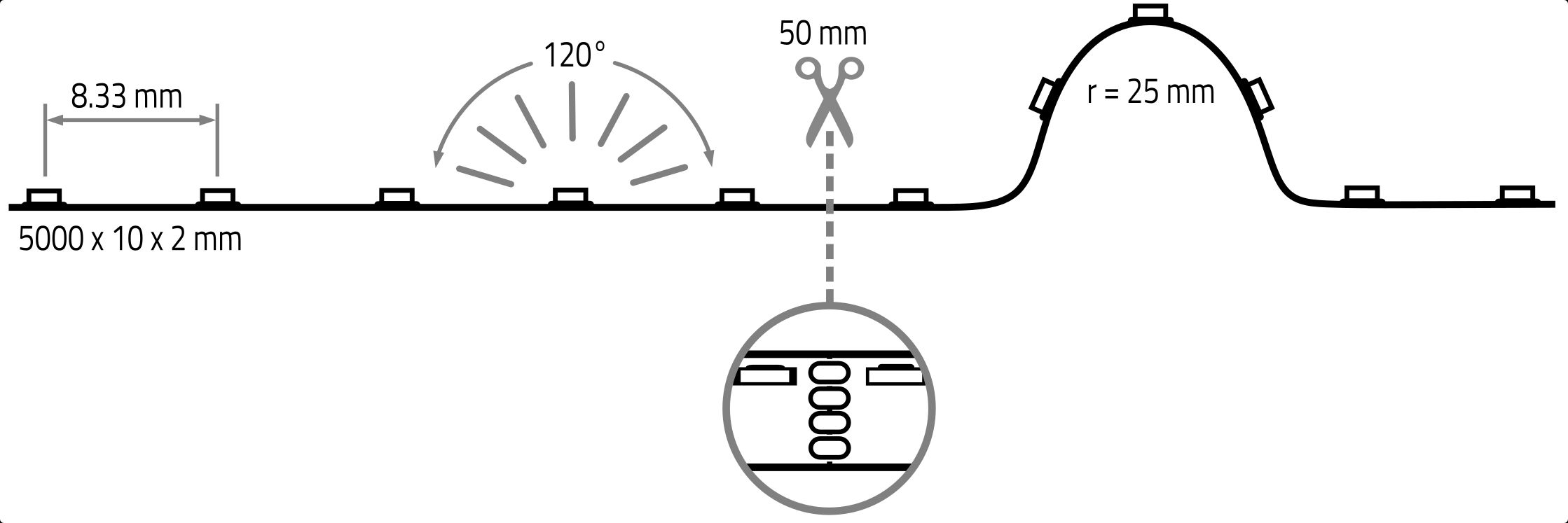

- Can be seperated every 5 cm or 6 LEDs
- Number of LEDs: 600
- LED pitch: 8.33 mm
- beam angle: 120°
- CRI: -
- Lumen per meter: 817 lm
- Voltage: 24V DC
- Power per meter: 32 W
- Lifetime L70: >= 36.000h
- energy efficiency class: B
- LxWxH in mm: 5.000 x 10 x 2
- Caution: Do not operate strip without aluminium profile
- and adequate ventilation.
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter roll
Technical Data
| BAR code: | 4012094748566 |
|---|---|
| Width: | 10 mm |
| Height: | 2 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 4085 lm |
| Lumen per LED (lm): | 6,80 lm |
| Current: | 6667 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 120 |
| Cutting length in mm: | 50 mm |
| Power W/m: | 32 |
| Lumen per meter: | 817 |
| Lumen per watt: | 25,53 |
| IP protection rating: | 20 |
| Power: | 160 W |
| Catalog color code: | weiss |
| Led color code: | RGB |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Anzahl led: | 600 |
| Input voltage: | 24 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| Ecodesign: | not assigned |
