CE
Disposal instructions according to 2012/19/EU
Light source not interchangeable
Parallel connection
Protection class III
REACH
RoHS
UV-resistant
Product number:
86738

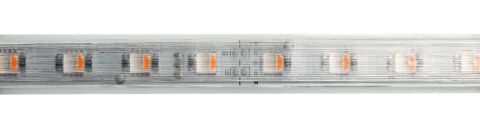

LD Flex.LED Strip,24V,IP67,RGBW 75W
Product information "LD Flex.LED Strip,24V,IP67,RGBW 75W"
- Flexible LED Stripe sealed in UV-, chlorine-,
- salt water- and solvent resistant transparent PVC
- for indoor- and outdoor use
- Cuttable every 100 mm / 6 LEDs
- Amount of LEDs: 300
- LED pitch: 16.67 mm
- Beam angle: 120°
- CRI: >80
- Light flux per meter: 940 lm
- Voltage: 24V DC
- Power per Meter: 15 W
- Lifetime L70: >= 36,000 h

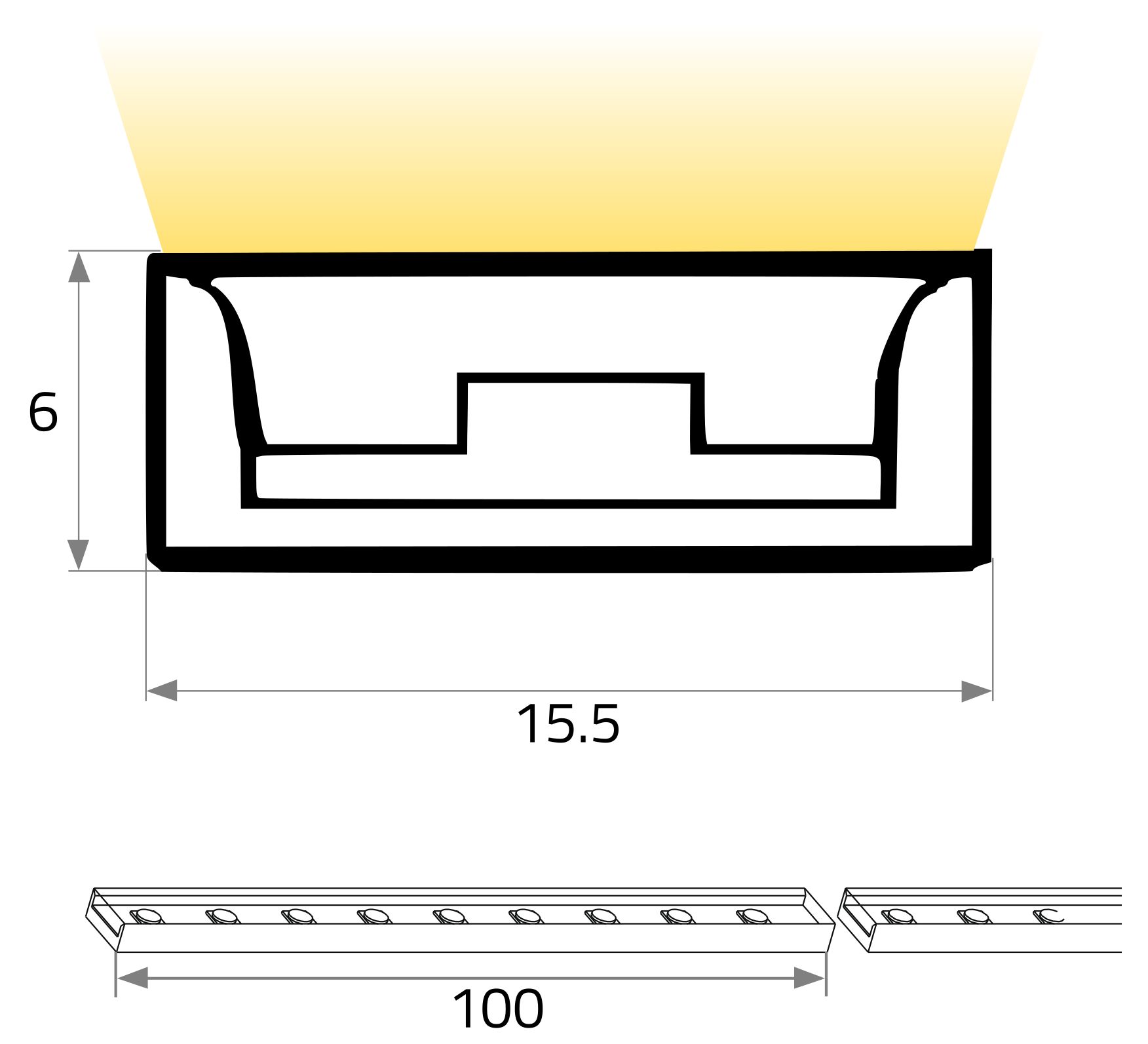

- LxWxH in mm: 10,000 x 15.5 x 6
- Temperature range: -20 to +40°C
- Processing temperature: +10 to +40°C
- Maximum length per connection: 5 meter
- Bending diameter: 50 mm
- Delivery contents: 5 meter roll, already with a feed connector
- and end cap
Technical Data
| BAR code: | 4012094867380 |
|---|---|
| Width: | 15 mm |
| Height: | 6 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 4700 lm |
| Lumen per LED (lm): | 15,67 lm |
| Current: | 3125 mA |
| Temperature range: | -20 - 40 |
| Power W/m: | 15 |
| Lumen per meter: | 940 |
| Lumen per watt: | 62,67 |
| IP protection rating: | 67 |
| Power: | 75 W |
| CRI: | 80 |
| Led color code: | RGBW 3000K |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| L70: | 36000 |
| Ecodesign: | containing product |
