CE
Parallel connection
Protection class III
RoHS
Product number:
86716

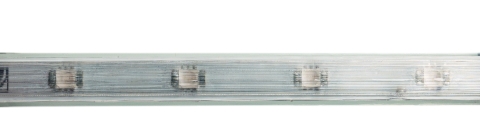

LD Flex.LED Strip,24V,IP67,RGB120W
Product information "LD Flex.LED Strip,24V,IP67,RGB120W"
- Flexible LED Strips Sealed PVC transparent
- for Indoor and Outdoor Use
- Flexible LED Strips Sealed PVC transparent
- For Indoor and Outdoor Use
- Separable Every 200 mm or 6 LEDs
- LED Distance: 33.33 mm
- Easy Installation with Solder-less Plug Connections
- Maximum Length per Connection: 20 or 30 Meter
- Delivery Contents: 10, 20 or 30 Meter Roll, Installed with Power Supply
- Connectors on Both Ends
- (10m Version Has 1 Power Supply Connector and 1 End Cap)
- Up to 30 Meters Can Be Installed without Interruption (Above 10 Meters in
- Length, Connect Both Ends to a Power Supply).
Technical Data
| BAR code: | 4012094867168 |
|---|---|
| Width: | 15 mm |
| Height: | 6 mm |
| Length: | 20000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 2800 lm |
| Lumen per LED (lm): | 4,67 lm |
| Current: | 5000 mA |
| Temperature range: | -20 - 55 |
| LEDs per meter: | 30 |
| Cutting length in mm: | 200 mm |
| Power W/m: | 6 |
| Lumen per meter: | 140 |
| Lumen per watt: | 23,33 |
| IP protection rating: | 67 |
| Power: | 120 W |
| Led color code: | RGB |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 600 |
| Gehaeuse code: | Kunststoff |
| Re skus: | 68328,80460,80478,80491,85455 |
| L70: | 36000 |
| Ecodesign: | not assigned |
