Product number:
86954

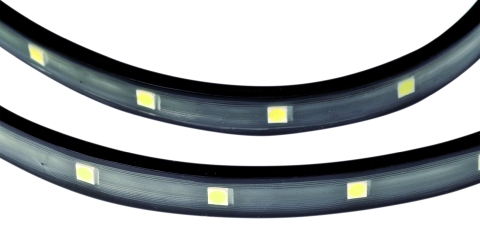

LD Flex.LED Strip,24V,IP65,5700K 180W
Product information "LD Flex.LED Strip,24V,IP65,5700K 180W"
- Flexible LED Strips Sealed PVC in White and Black
- for Indoor and Outdoor Use
- All 16,6 cm or 5 LEDs Separable
- LED Distance: 33,2 mm
- Easy Installation with Solder-less Plug Connections
- Maximum Length per Connection: 20 or 30 Meter
- Delivery Contents: 10, 20 or 30 Meter Roll, Installed with Power Supply
- Connectors
- On Both Ends (10m Version Has 1 Power Supply Connector and 1 End Cap)
- Up to 30 Meters Can Be Installed without Interruption (Above 10 Meters in
- Length,
- Connect Both Ends to a Power Supply).
- Sorted and Stored by Binning Code
Technical Data
| BAR code: | 4012094869544 |
|---|---|
| Width: | 13 mm |
| Height: | 6 mm |
| Length: | 30000 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per fixture (lm): | 18720 lm |
| Lumen per LED (lm): | 20,80 lm |
| Current: | 7500 mA |
| LEDs per meter: | 30 |
| Cutting length in mm: | 20 mm |
| Power W/m: | 6 |
| Lumen per meter: | 624 |
| Lumen per watt: | 104 |
| IP protection rating: | 65 |
| Power: | 180 W |
| Catalog color code: | weiss |
| Led color code: | ca. 5700K kaltweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 900 |
| Gehaeuse code: | Kunststoff |
| Re skus: | 80474,80491,85455 |
| Auslaufartikel: | Yes |
| Ecodesign: | containing product |
