CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Product number:
86528
LD Flex.LED LeisteInnen 2200- 4000K
€40.00

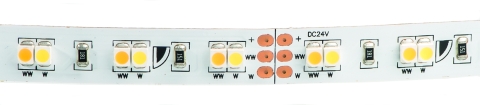

Product information "LD Flex.LED LeisteInnen 2200- 4000K"
- with self-adhesive back,
- for indoor use

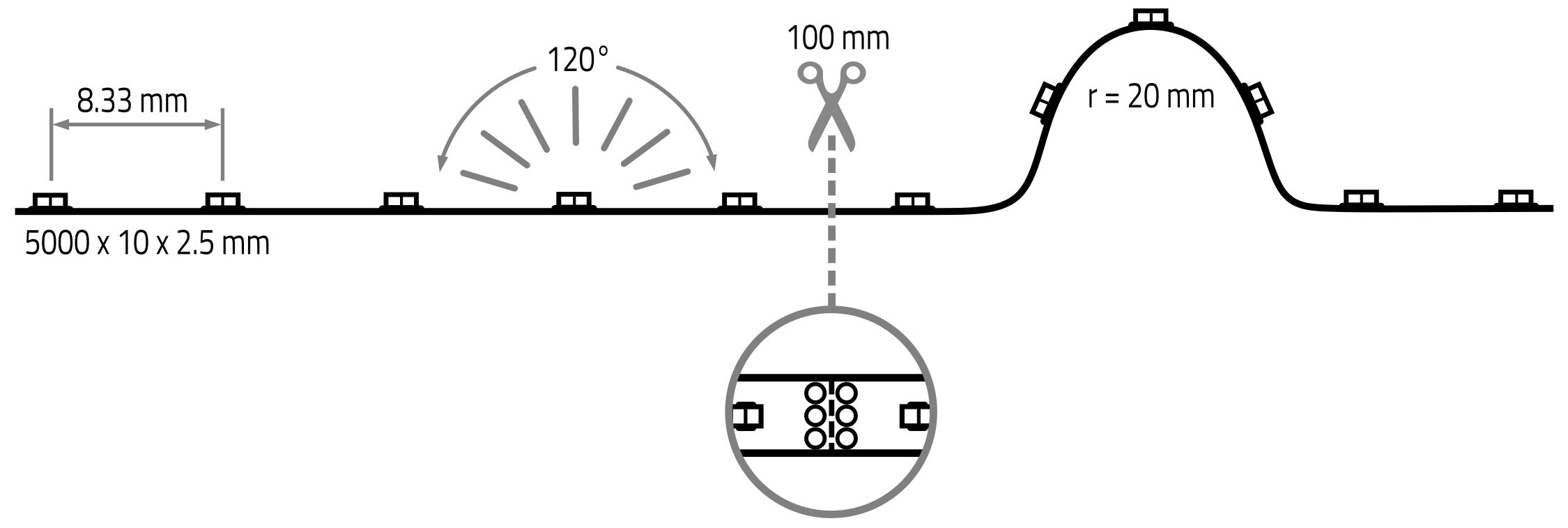

- cuttable every 10,0 cm / 12 LEDs
- Amount of LEDs: 600
- LED spacing: 8,3 mm
- Beamangle: 120°
- CRI: > 80
- Light flux per metre: 859 lm
- lifetime L70B50: >= 67.000 h
- Load per meter: 9,6 W
- Energyefficiency class: G
- LxWxH in mm: 5.000 x 10 x 2,5
- Easy installation due to solder-free connectors
- Maximum length per connection: 5 metres. Feed in anew for longer lengths
- Scope of delivery: 5 metre roll, 5 x in-feeder,1 x direct connector
Technical Data
| BAR code: | 4012094865287 |
|---|---|
| Width: | 10 mm |
| Height: | 2 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per fixture (lm): | 4295 lm |
| Lumen per LED (lm): | 7,16 lm |
| Current: | 2000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 120 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 9,6 |
| Lumen per meter: | 859 |
| Lumen per watt: | 89,48 |
| IP protection rating: | 20 |
| Power: | 48 W |
| Energy efficiency class: | EEK-Label_G |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | 2200-4000K tunable white |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 600 |
| Re skus: | 70520,70522 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| LebensdauerL70B50: | 67000 |
| Ecodesign: | light source |
