CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Product number:
81315

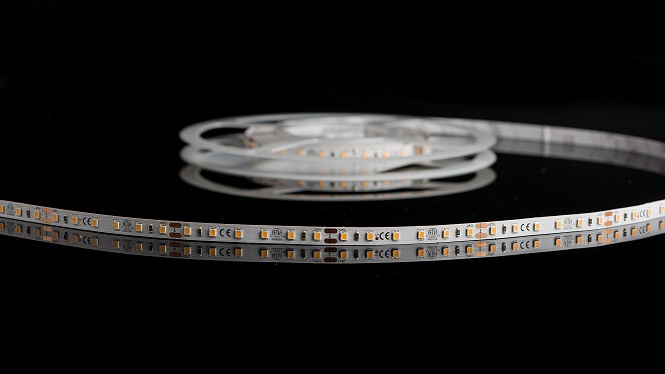

LD Flex.LED Leiste,Innen,3000K CRI98
Product information "LD Flex.LED Leiste,Innen,3000K CRI98"
- with self adhesive backside,
- for indoor use.
- can be seperated every 7,14 cm or 6 LEDs
- number of LEDs: 420
- LED pitch: 11,9 mm
- beam angle: 120°
- CRI: 98
- luminous flux per meter: 541 lm
- input: 24 V DC
- power per meter: 6,72 W
- lifetime L70: >= 36.000 h
- energy efficiency class: G
- LxWxH in mm: 5.000 x 8 x 1.2
- Maximum length per connection: 5 Meter. New connectors for greater length.
- Delivery contents: 5 meter roll
Technical Data
| BAR code: | 4012094813158 |
|---|---|
| Width: | 8 mm |
| Height: | 1 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 2705 lm |
| Lumen per LED (lm): | 6,44 lm |
| Current: | 1400 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 84 |
| Cutting length in mm: | 71,4 mm |
| Power W/m: | 6,72 |
| Lumen per meter: | 541 |
| Lumen per watt: | 80,51 |
| IP protection rating: | 20 |
| Power: | 33,6 W |
| Energy efficiency class: | EEK-Label_G |
| CRI: | 98 |
| Led color code: | 2000K-6500K tunable white |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Anzahl led: | 420 |
| Input voltage: | 24 |
| Gehaeuse code: | Kunststoff |
| L70: | 36000 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
