CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
REACH
RoHS
Product number:
81305
LD Flex.LED Leiste,Innen,3000K CRI90
Product information "LD Flex.LED Leiste,Innen,3000K CRI90"
- with self adhesive backside,
- for indoor use, IP20

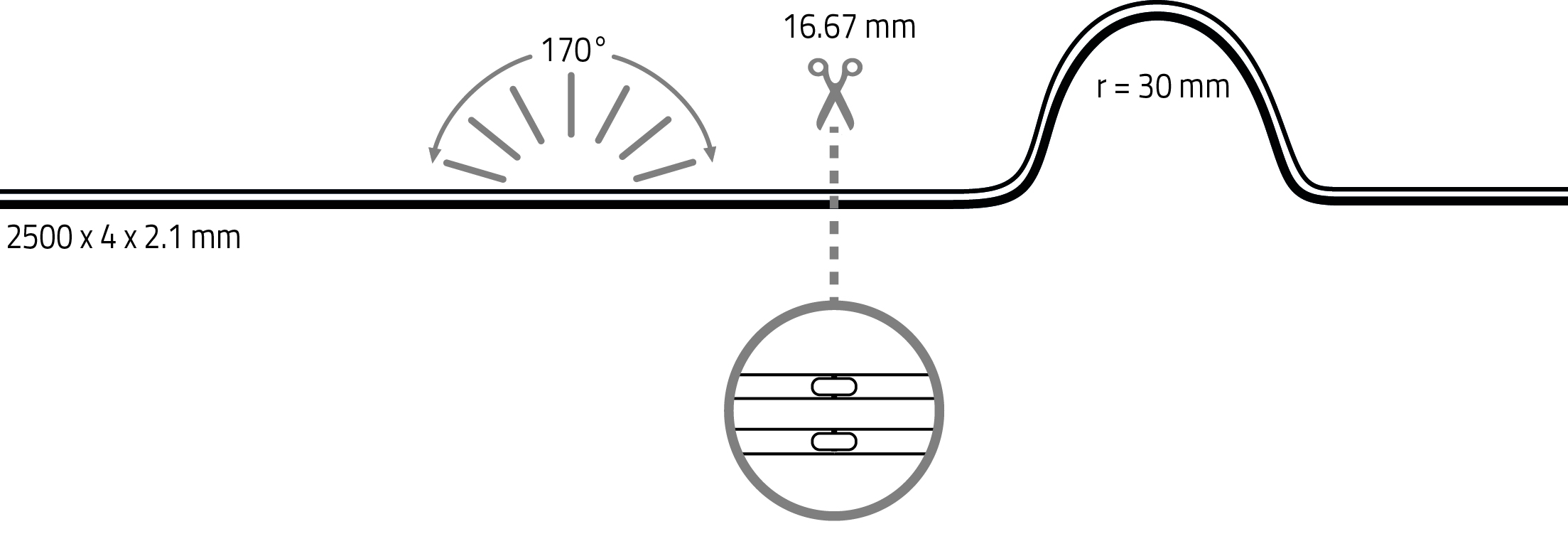

- can be seperated every 16.67 mm or 7 LEDs
- number of LEDs: 1050
- LED pitch: 2.38 mm
- beam angle: 170°
- CRI: 90
- luminous flux per meter: 660 lm
- input: 24 V DC
- power per meter: 9 W
- lifetime L70B50: >= 36.000 h
- energy efficiency class: G
- LxWxH in mm: 2.500 x 4 x 2.1
- Maximum length per connection: 2.5 Meter. New connectors for greater length.
- Delivery contents: 2.5 meter roll with 120 mm connection cable
Technical Data
| BAR code: | 4012094813059 |
|---|---|
| Width: | 4 mm |
| Height: | 2 mm |
| Length: | 2500 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 1650 lm |
| Lumen per LED (lm): | 1,57 lm |
| Current: | 937 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 420 |
| Cutting length in mm: | 16,67 mm |
| Power W/m: | 9 |
| Lumen per meter: | 660 |
| Lumen per watt: | 73,33 |
| IP protection rating: | 20 |
| Power: | 22,5 W |
| Energy efficiency class: | EEK-Label_G |
| CRI: | 90 |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 170 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 1050 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | light source |
| Psb: | 0,0 |
