CE
Disposal instructions according to 2012/19/EU
Interseroh
Only suitable for indoor installations
Parallel connection
Protection class III
REACH
RoHS
Product number:
79141D
LD Flex. LEDStrip, 24V, Innen, DTW
Product information "LD Flex. LEDStrip, 24V, Innen, DTW"
- flexible LED Strip with self adhesive backside,
- for indoor use.

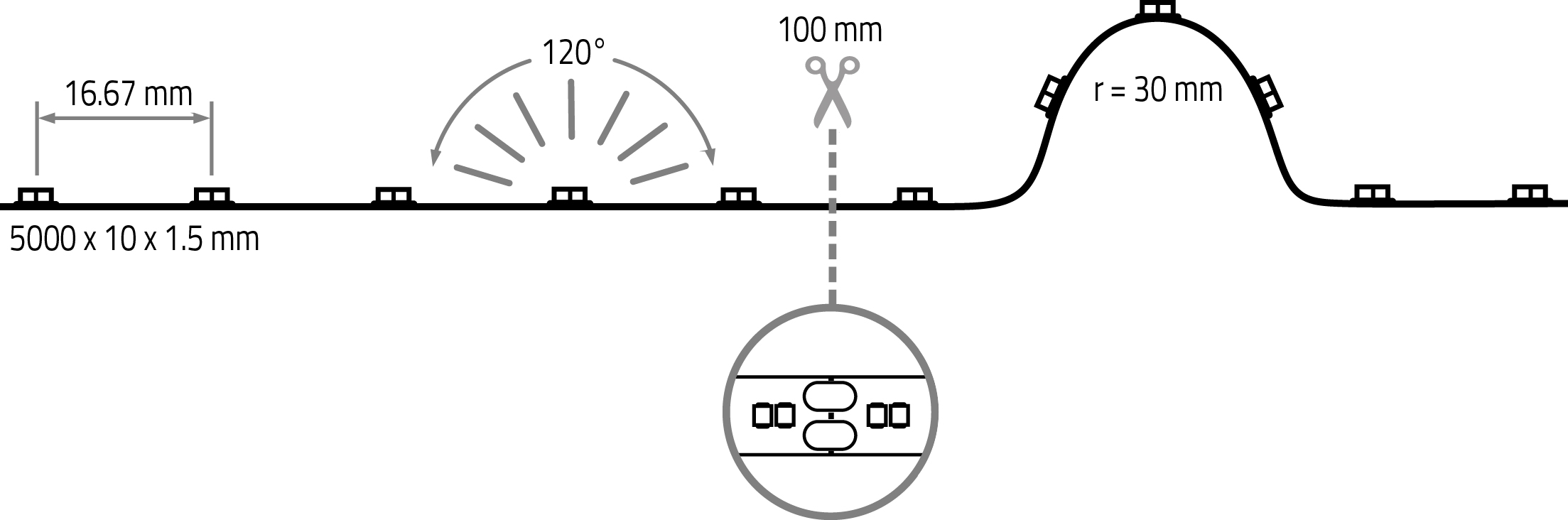

- can be seperated every 100 mm or 12 LEDs
- number of LEDs: 600
- LED pitch: 16.67 mm
- beam angle: 120°
- CRI: >80
- lumen per meter: 772 lm
- Light colour: 3300 K - 1900 K (Dim To Warm)
- voltage: 24 V DC
- power per meter: 7.5 W
- lifetime L70B50: >= 50.000 h
- energy efficiency class: E
- LxWxH in mm: 5.000 x 10 x 1,5
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter roll with 300 mm connecting cable
Technical Data
| BAR code: | 4251835791410 |
|---|---|
| Width: | 10 mm |
| Height: | 1 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 3860 lm |
| Lumen per LED (lm): | 6,43 lm |
| Current: | 1563 mA |
| Temperature range: | -20 - 40 |
| LEDs per meter: | 120 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 7,5 |
| Lumen per meter: | 772 |
| Lumen per watt: | 102,93 |
| IP protection rating: | 20 |
| Power: | 37,5 W |
| Energy efficiency class: | EEK-Label_E |
| CRI: | 80 |
| Led color code: | 3300-1900K Dim to Warm |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 600 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
