CE
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Short circuit protection
Product number:
80206

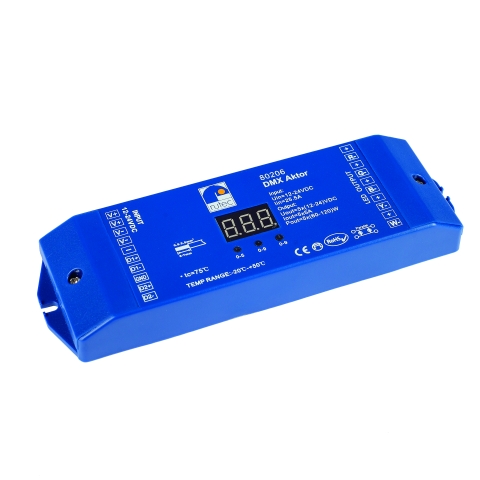

LD DMX Aktor 600W/24V 5-farbig
Product information "LD DMX Aktor 600W/24V 5-farbig"
- DMX actuator DC
- 1-5 addresses - 3,4 or 5 channel
- DMX512
- 3, 4 or 5 channels/ 3 - 5 adresses adjustable, max 5A pro channel
- DMX address freely adjustable and visible using digital display
- Standalone mode avaible
- for indoor use
- IP20
- Protection Class 3, CE, RoHS, REACH
- Total power:
- 3 channels - 180W (12V), 360W (24V)
- 4 channels - 240W (12V), 480W (24V)
- 5 channels - 300W (12V), 600W (24V)
Technical Data
| BAR code: | 4012094802060 |
|---|---|

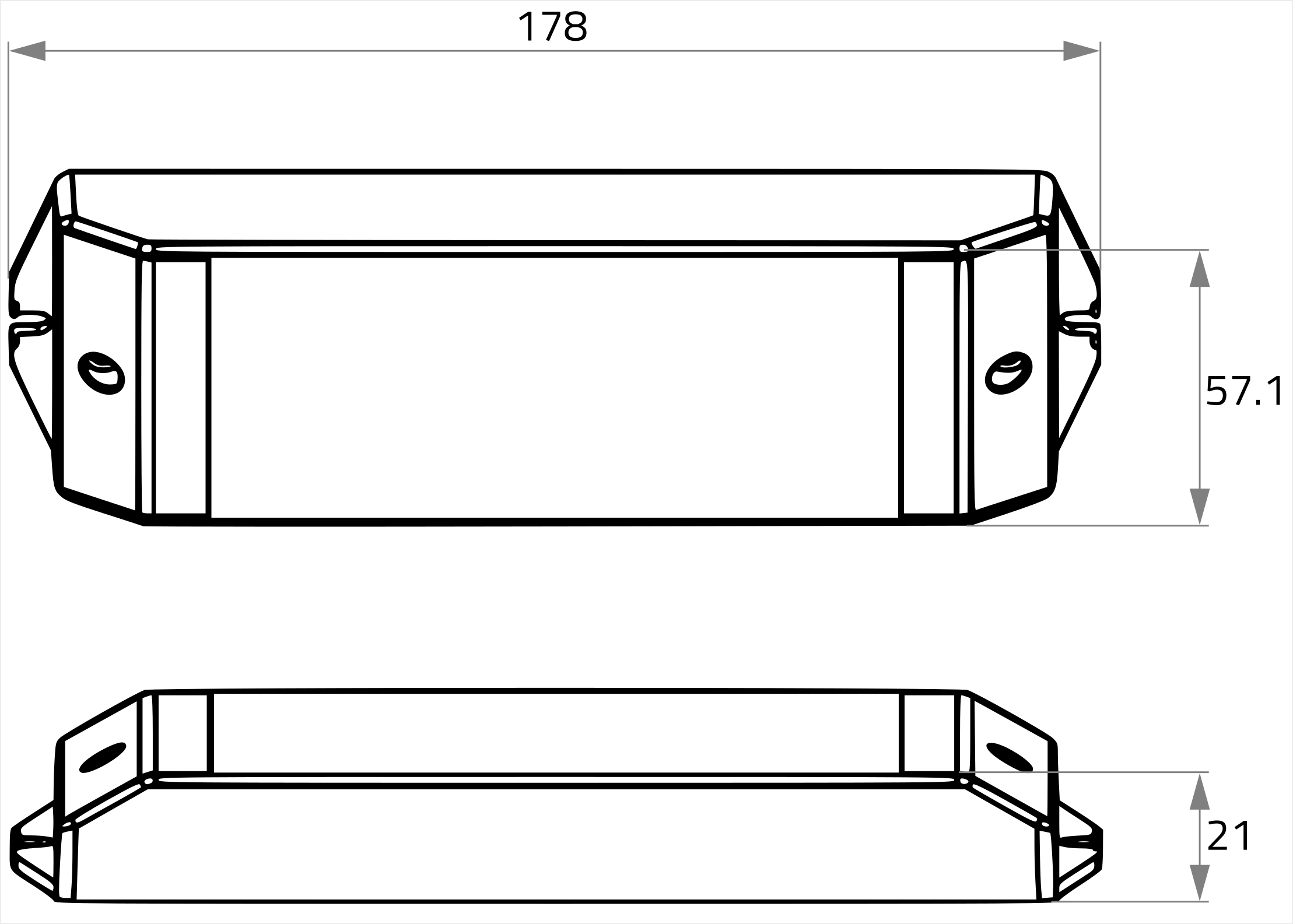

| Width: | 57 mm |
| Height: | 21 mm |
| Length: | 178 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 25000 mA |
| Temperature range: | -20 - 50 |
| IP protection rating: | 20 |
| Power: | 300-600 W |
| Catalog color code: | ohne |
| Leuchte: | without |
| Voltage: | 12-24 V |
| Input voltage: | 12-24 |
| Gehaeuse code: | Kunststoff |
| Re skus: | 85455,88458,89990 |
| Auslaufartikel: | Yes |
| Ecodesign: | not assigned |
