CE
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Short circuit protection
Product number:
80205

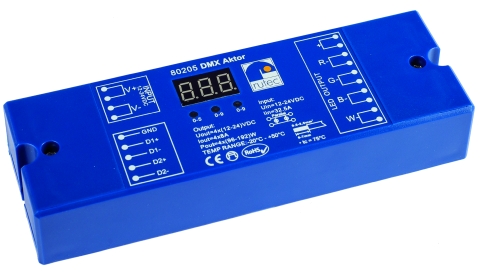

LD DMX Aktor 384W/12V 768W/24V mehrf.
Product information "LD DMX Aktor 384W/12V 768W/24V mehrf."
- DMX actuator DC
- 1-4 addresses - 3/4 channels, multicolour, constant voltage
- DMX512
- 3 or 4 channels/ 3 - 4 addresses adjustable, max. 8A per channel
- DMX address freely adjustable and visible using digital display.
- for indoor use
- IP20
- Protection Class 3, CE, RoHS, REACH
- High total power:
- 3 channels - 288W (12V), 576W (24V)
- 4 channels - 384W (12V), 768W (24V)
Technical Data
| BAR code: | 4012094802053 |
|---|---|
| Width: | 58 mm |
| Height: | 28 mm |
| Length: | 170 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 32000 mA |
| Temperature range: | -20 - 50 |
| IP protection rating: | 20 |
| Power: | 384-768 W |
| Catalog color code: | ohne |
| Leuchte: | without |
| Voltage: | 12-24 V |
| Input voltage: | 12-24 |
| Gehaeuse code: | Kunststoff |
| Re skus: | 80500,86512,89990 |
| Auslaufartikel: | Yes |
| Ecodesign: | not assigned |
