CE
Disposal instructions according to 2012/19/EU
Independent converter
Only suitable for indoor installations
Parallel connection
Protection class III
REACH
RoHS
Short circuit protection
Product number:
80270

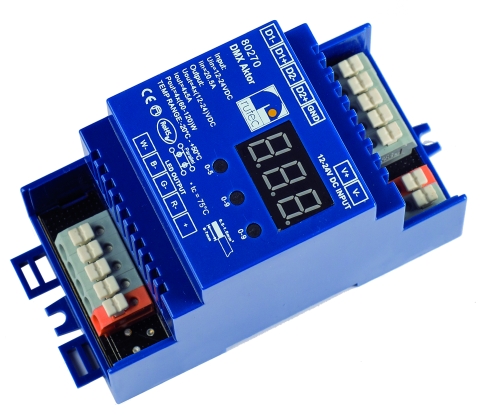

LD DMX Aktor 12-24V Reiheneinbau mehrfarbig
Product information "LD DMX Aktor 12-24V Reiheneinbau mehrfarbig"
- rutec DMX actuator DC
- 3/4 adresses - 3/4 channels, multicolour,
- constant voltage
- DMX512
- 3 or 4 channels/ 3 or 4 adresses adjustable,
- max. 5A per channel
- DMX adress freely adjustable and visible using
- Digital display.
- for indoor use
- IP20
- Protection Class 3, CE, RoHS, REACH
- Total power:
- 3 channels - 180W (12V), 360W (24V)
- 4 channels - 240W (12V), 480W (24V)
Technical Data
| BAR code: | 4012094802701 |
|---|---|
| Width: | 53 mm |
| Height: | 65 mm |
| Length: | 110 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 20000 mA |
| Temperature range: | -20 - 50 |
| IP protection rating: | 20 |
| Power: | 240-480 W |
| Catalog color code: | blau |
| Leuchte: | without |
| Voltage: | 12-24 V |
| Input voltage: | 12-24 |
| Gehaeuse code: | Kunststoff |
| Effizienz: | 98 |
| Re skus: | 80500,80510,86512,89990 |
| Auslaufartikel: | Yes |
| Ecodesign: | not assigned |
