CE
Do not cover with heat insulting materials
Only suitable for indoor installations
Protection class III
RoHS
Series connection
Product number:
R57901UWWOK

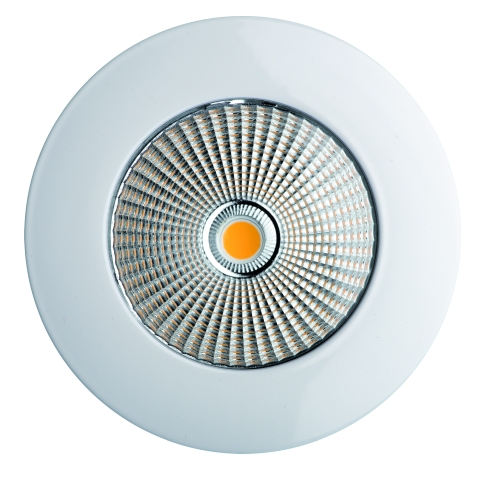

LD Calina LED EBS 7W IP54 o.Konverter
Product information "LD Calina LED EBS 7W IP54 o.Konverter"
- No extended Text
Technical Data
| BAR code: | 4012094579016 |
|---|---|
| Unit Code: | piece |
| Customer discount group code: | R1 |
| Installation diameter: | 81 mm |
| Outer diameter: | 100 mm |
| Lumen per fixture (lm): | 500 lm |
| Lumen per LED (lm): | 500,00 lm |
| Current: | 350 mA |
| Installation depth: | 70 mm |
| Temperature range: | -20 - 40 |
| Lumen per watt: | 71,43 |
| IP protection rating: | 54 |
| Power: | 7 W |
| CRI: | 90 |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | without |
| Beam angle: | 35 Grad ° |
| Anzahl led: | 1 |
| Re skus: | 57050,57051,57052,57053,57054,57055,57056,57057,57058,57059,57060,57061,57062,80790,85443 |
| Auslaufartikel: | Yes |
| L70: | 72000 |
| Ecodesign: | not assigned |
