Product number:
700129

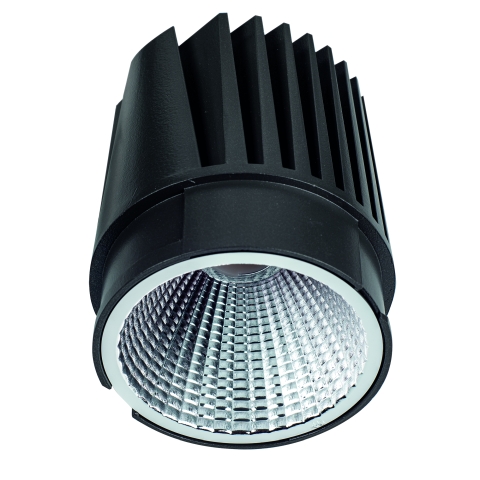

LD CORU-80,400mA,15W,3000K,CRI90,40°
Product information "LD CORU-80,400mA,15W,3000K,CRI90,40°"
- LED power module 15 W with reflector
- with Luminus-CXM-14 Power LED Array 4th gen.
- for recessed spotlights of the CORU-80(K) product family
- input current: 400 mA DC
- power: 15 W
- luminous flux: 1,622 lm
- light colour: 3000 K
- CRI: >90
- lifespan L70B50: >= 50.000 h
- energy efficiency class: E
- beam angle: 40°
- protection class III
- Excellent heat dissipation due to optimised aluminium heatsink
- Aluminium reflector with halogen apperance and uniform light distribution
- With 500 mm connection cable and JST plug connection for reverse polarity
- protected and tool free replacement of the lamp
- without constant current converter
Technical Data
| BAR code: | 4251835701297 |
|---|---|

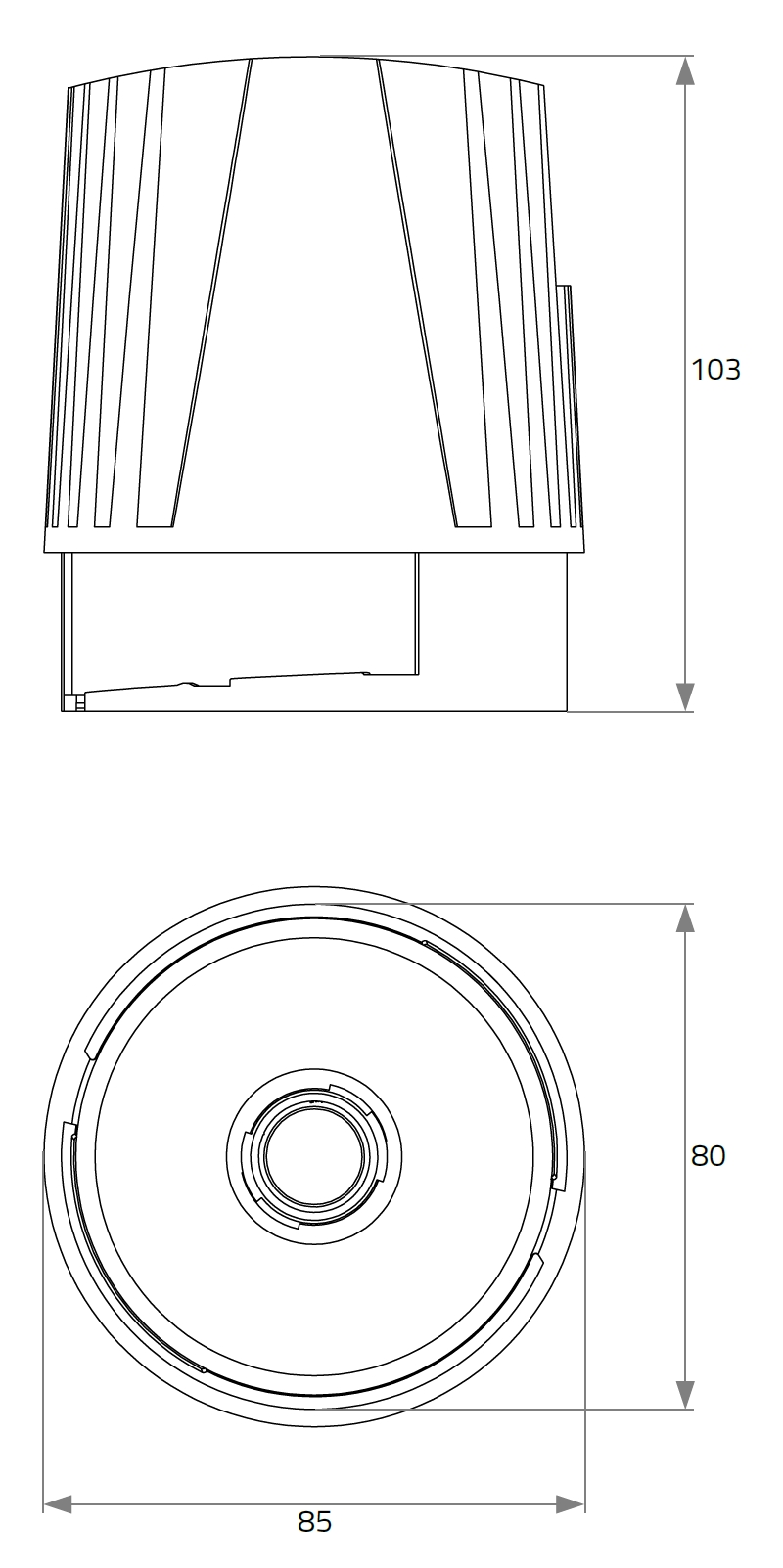

| Height: | 103 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Installation diameter: | 80 mm |
| Outer diameter: | 85 mm |
| Lumen per fixture (lm): | 1622 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 400 mA |
| Temperature range: | -20 - 35 |
| Lumen per watt: | 108,13 |
| IP protection rating: | 40 |
| Power: | 15 W |
| Energy efficiency class: | EEK-Label_E |
| CRI: | 90 |
| Catalog color code: | schwarz |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 40 Grad ° |
| Gehaeuse code: | Aluminium |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
