CE
Only suitable for indoor installations
RoHS
Product number:
68505

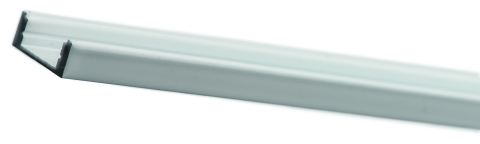

LD Alu Profil LED H.7mm
Product information "LD Alu Profil LED H.7mm"
- Aluminum Profile SlimLine 7 mm
- Material: Anodized Aluminum
- Ideal for Flexible LED Strips Up To 12,2mm Width
- For Indoor Use
- Lengths: 1 and 2 Meter
- New Slightly Arched Cover with Optimized Optical Properties
- Available in Clear, Semi Matte and Matte
- Cover Material: Polycarbonate, UV-Resistant and Break Resistant
- Easy Installation and De-installation of the Cover by Clicking In
- Delivery without Cover, End Caps and Mounting Brackets - Please Order Separately

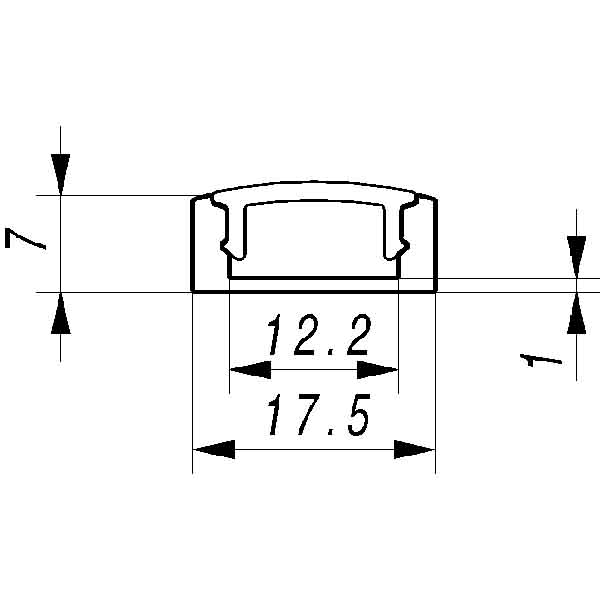

Technical Data
| BAR code: | 4012094685052 |
|---|---|
| Width: | 17 mm |
| Height: | 7 mm |
| Length: | 2000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per LED (lm): | 0,00 lm |
| IP protection rating: | 20 |
| Catalog color code: | aluminium |
| Leuchte: | without |
| Gehaeuse code: | Aluminium |
| Re skus: | 68540,68597,68598,68660,68661 |
| Auslaufartikel: | Yes |
| Ecodesign: | not assigned |
