CE
Only suitable for indoor installations
Protection class II
RoHS
Product number:
88457

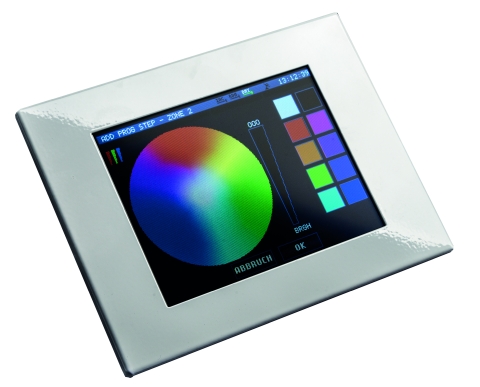

LCD RGB DMXTouchscreen Einbau
Product information "LCD RGB DMXTouchscreen Einbau"
- LCD Touch Controller for control of:
- colour, select, RGB,RGBW, RGBW+WW LEDs
- with DMX-512 A, 8 bit communication
- housing: metal
- Graphic display, 24 bit colour depth, resolution 670x480
- Touch panel operation
- Installation dimensions LxWxH in mm: 160 x 118 x 45
- Outer dimensions LxWxH in mm: 175 x 132 x 50
- 4 independent zones
- up to 6 Colorscene, -sequence each zone programmable
- Masterfader function setable
- up to 10 colors can be set to each colorsequence
- Fadetime and retention period changeable
- simple, rapid colour selection via RGB colour spectrum or via DMX value
- Colorscenes, -sequences can be synchronisised with other zones
- Calendar function selectable with weekdays, start- and endingtime
- zones and program buttons can be individually labelled
- The Userinterface can be set individual in color and brightness
- RDM function to link multiple LCD Touchcontroller to
- control zones from different switching points.
- SECONDLIFE ITEM -heavily discounted- only while stocks last!
Technical Data
| BAR code: | 4012094884578 |
|---|---|
| Width: | 132 mm |
| Height: | 50 mm |
| Length: | 175 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per LED (lm): | 0,00 lm |
| IP protection rating: | 20 |
| Catalog color code: | weiss |
| Leuchte: | without |
| Input voltage: | 12-24 |
| Gehaeuse code: | Edelstahl |
| Re skus: | 88477 |
| Auslaufartikel: | Yes |
| Ecodesign: | not assigned |
