CE
Ceiling cutout round
Disposal instructions according to 2012/19/EU
Do not cover with heat insulting materials
Interseroh
Only suitable for indoor installations
Parallel connection
Protection class III
REACH
RoHS
Product number:
LED55014WW-V2

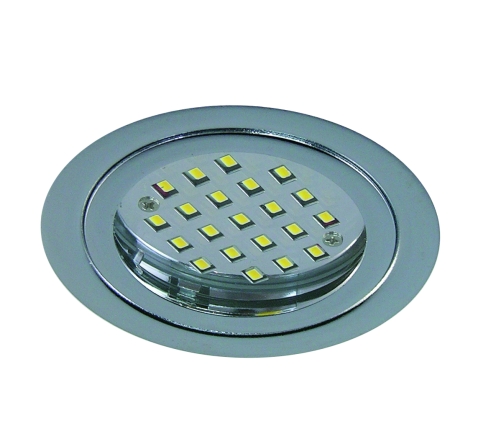

LARA RUND CHROM 2W
Product information "LARA RUND CHROM 2W"
- for indoor use, IP40
- housing: steel; protective glass
- Housing colour: white
- not swivelling
- Beam angle: 120°
- Power: 2 W
- Light colour: 3000 K
- Luminous flux: 200 lm
- CRI: >80
- Lifespan L70B50: >= 26.000 h
- input voltage: 12 V DC
- protection class III

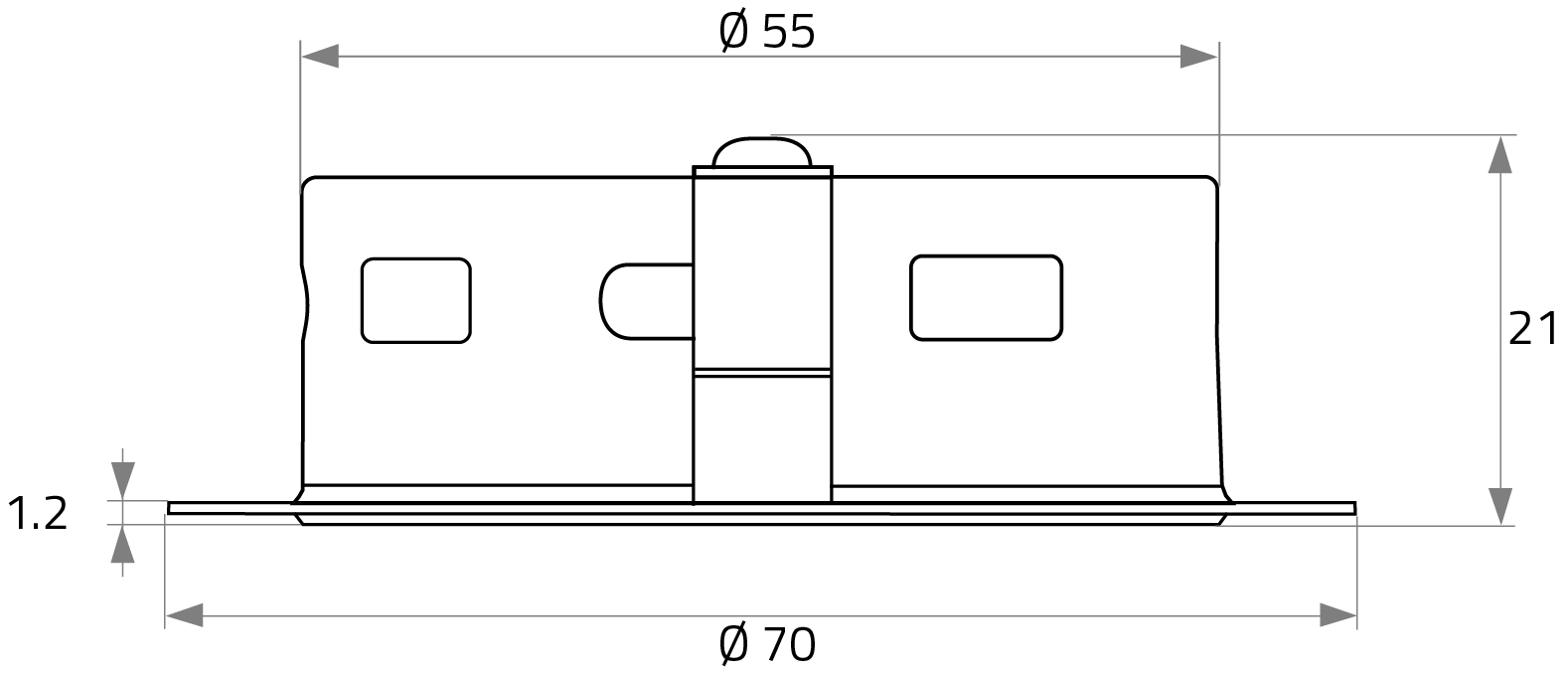

- Installation depth: 22 mm
- Ceiling cut-out: 60 mm
- Outer diameter: 70 mm
- Energie efficiency class: F
- not included LED power supply
Technical Data
| BAR code: | 4012094520148 |
|---|---|
| Height: | 21 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Installation diameter: | 60 mm |
| Outer diameter: | 70 mm |
| Lumen per fixture (lm): | 200 lm |
| Lumen per LED (lm): | 0,00 lm |
| Housing format furniture spotlight: | Yes |
| Current: | 166 mA |
| Installation depth: | 22 mm |
| Temperature range: | -20 - 40 |
| Lumen per watt: | 100 |
| IP protection rating: | 40 |
| Power: | 2 W |
| Energy efficiency class: | EEK-Label_F |
| CRI: | 80 |
| Catalog color code: | chrom |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 12 V |
| Anzahl led: | 21 |
| Gehaeuse code: | Stahl |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| LebensdauerL70B50: | 26000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
| Service life L90B10: | 16000 |
