CE
Do not cover with heat insulting materials
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Product number:
LED53503WW
LARA ECKIG 3-Fl. 7,5W
€30.00

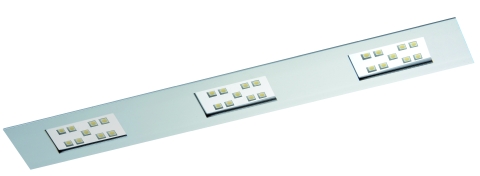

Product information "LARA ECKIG 3-Fl. 7,5W"
- for indoor use, IP40
- housing: solid aluminum
- Housing colour: brushed aluminum
- not swivelling
- Beam angle: 120°
- Power: 7.5 W
- Light colour: 3200 K
- Luminous flux: 480 lm
- CRI: >80
- Lifespan L70: >= 54.000 h
- input voltage: 12 V DC
- protection class III
- Installation depth: 11.5 mm
- Ceiling cut-out: 357 x 48 mm
- Outer dimensions: 365 x 52 mm
- not included LED power supply
- SECONDLIFE ITEM -heavily discounted- only while stocks last!
Technical Data
| BAR code: | 4012094535036 |
|---|---|
| Width: | 52 mm |
| Length: | 365 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Booformat eckig: | Yes |
| Lumen per fixture (lm): | 480 lm |
| Lumen per LED (lm): | 0,00 lm |
| Housing format furniture spotlight: | Yes |
| Installation depth: | 11,5 mm |
| Temperature range: | -20 - 40 |
| Lumen per watt: | 64 |
| IP protection rating: | 20 |
| Power: | 7,5 W |
| CRI: | 80 |
| Catalog color code: | aluminium |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 12 V |
| Sockel code: | ohne |
| Anzahl led: | 27 |
| Gehaeuse code: | Aluminium |
| Re skus: | 59190,59192,59193,85267 |
| Auslaufartikel: | Yes |
| L70: | 54000 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
