CE
Only suitable for indoor installations
Parallel connection
Protection class II
RoHS
Short circuit protection
Product number:
80120

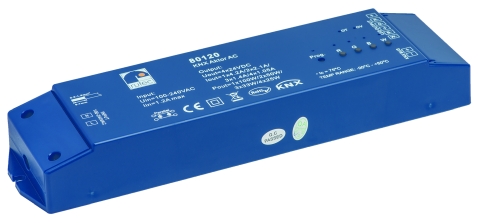

KNX Aktor AC 100-240V 100W f.24V
Product information "KNX Aktor AC 100-240V 100W f.24V"
- rutec KNX dimmer actuator AC constant voltage
- Constant voltage 1-channel single-colour
- System requirements: ETS 3.0F or higher
- for indoor use (IP20)
- Terminal connections
- Protection against short-circuit, overvoltage and overtempe-
- rature
- Manual settings possible using knobs on device
- Optical LED warnings for overtemperature(OT) and
- overvoltage (OV)
- optical LED display for normal operation and address setting
- Device is produced to EN60529
- Total power: 50W (24V)
- SECONDLIFE ITEM -heavily discounted- only while stocks last!
Technical Data
| BAR code: | 4012094801209 |
|---|---|
| Width: | 64 mm |
| Height: | 32 mm |
| Length: | 244 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 4167 mA |
| Temperature range: | -25 - 55 |
| IP protection rating: | 20 |
| Power: | 100 W |
| Catalog color code: | blau |
| Leuchte: | without |
| Input voltage: | 230 |
| Output voltage: | 24 |
| Gehaeuse code: | Kunststoff |
| Effizienz: | 98 |
| Re skus: | 86512 |
| Auslaufartikel: | Yes |
| Leerlauf: | not suitable for no load application |
| Wirkungsgrad Vollast: | 90 |
| Geeignete Lichtquelle: | LED |
| Ecodesign: | seperate control gear |
| Psb: | 2,0 |
| Pnet: | 2,1 |
| Pno: | >0,5 |
