Product number:
80140

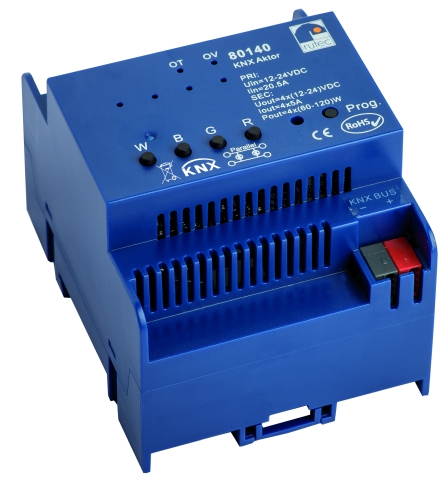

KNX Aktor 12-24V Reiheneinbau mehrfarbig
Product information "KNX Aktor 12-24V Reiheneinbau mehrfarbig"
- rutec KNX actuator DC
- Constant voltage 4-channels single-colour or multi-colour
- single-colour or multi-colour can be set using software
- System requirements: ETS 3.0F or higher
- 4 independent channels 5A/channel
- for indoor use (IP20)
- Terminal connections
- Protection against short-circuit, overvoltage and overtemperature
- Manuel settings possible using knobs on device
- Optical LED warnings for overtemperature(OT) and overvoltage (OV)
- optical LED display for normal operation and adress setting
- Device is produced to EN60529
- Total power: 24W (12V), 480W (24V)
Technical Data
| BAR code: | 4012094801407 |
|---|---|
| Width: | 71 mm |
| Height: | 67 mm |
| Length: | 90 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 20000 mA |
| Temperature range: | -20 - 50 |
| IP protection rating: | 20 |
| Power: | 240-480 W |
| Catalog color code: | blau |
| Leuchte: | without |
| Input voltage: | 12-24 |
| Output voltage: | 12-24 |
| Gehaeuse code: | Kunststoff |
| Effizienz: | 98 |
| Re skus: | 86512 |
| Ecodesign: | not assigned |
