CE
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Product number:
65500

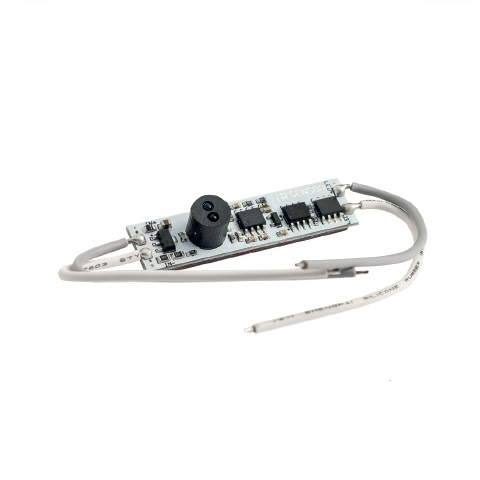

IR-Bewegungssensorplatine
Product information "IR-Bewegungssensorplatine"
- LED dimmer for installation in aluminum profiles for monochrome lighting
- for indoor use, IP20
- 1 channel 8 A
- Protection class III, CE, RoHS
- Input: DC 12 V - DC 24 V
- Output: DC 12V - DC 24V (PWM)
- Power: 96 W (12 V), 192 W (24 V)
- LxWxH in mm: 46 x 11.5 x 9.6
- Temperature range -20 ° C to + 40 ° C
- A short detection changes the switching state on / off
- A long detection continuously dims between minimum and maximum threshold
- SECONDLIFE ITEM -heavily discounted- only while stocks last!
Technical Data
| BAR code: | 4012094655000 |
|---|---|
| Width: | 11 mm |
| Height: | 9 mm |
| Length: | 46 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 8000 mA |
| Temperature range: | -20 - 40 |
| IP protection rating: | 20 |
| Power: | 96-192 W |
| Catalog color code: | sonstige |
| Leuchte: | without |
| Input voltage: | 12-24 |
| Output voltage: | 12-24 |
| Auslaufartikel: | Yes |
| Ecodesign: | not assigned |
