Product number:
88398

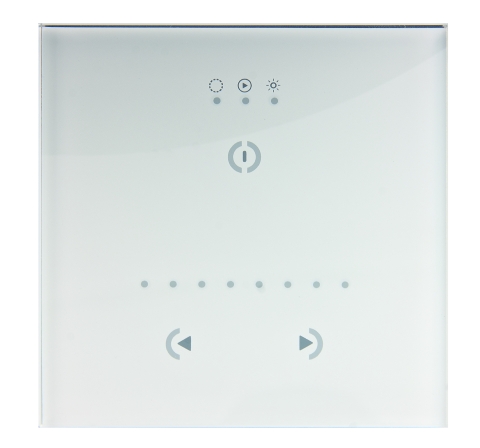

Glas Touchpanel DMX
Product information "Glas Touchpanel DMX"
- DMX512 Controller with Glass Surface
- Sensitive Touch Buttons
- Up to 24 Dynamic or Static Scenes
- Programmable with Sunlite Software (included in the delivery)
- 32-bit ARM Technology
- Weight: 130g
- Easy Wall Installation on a Standard Flush-Mounted Box
- Input Voltage: 5,5-12V DC (Power Supply included in the delivery)
- Consumption 5W
- CE, Protection Class III, IP20 (After Installation)
- Made in EU
- Attention: The Glass Touch Panel is a DMX Controller and Requires a DMX Decoder
- as Ballast (We Recommend Our DMX-Driver 88488, 88489, 88484 and 88505)
- Delivery Contents: Touch Panel, Mounting Frame (pre-assembled), USB-Cable,
- Instruction Manual, Connection Plug 5 Poles, Power Supply
- Required: DMX Digital Cable 2 Wires + Shielding
- AES/EBU (DMX) 0T206YB Item No. 89990 (Page 284)
Technical Data
| BAR code: | 4012094883984 |
|---|---|
| Width: | 86 mm |
| Height: | 10 mm |
| Length: | 86 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per LED (lm): | 0,00 lm |
| Installation depth: | 30 mm |
| Temperature range: | to 50 |
| IP protection rating: | 20 |
| Power: | 5 W |
| Catalog color code: | weiss |
| Leuchte: | without |
| Input voltage: | 5,5-12 |
| Gehaeuse code: | Glas |
| Auslaufartikel: | Yes |
| Ecodesign: | not assigned |
