Product number:
88610

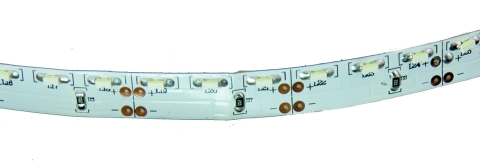

Flexible LED Leiste,Innen,rot
Product information "Flexible LED Leiste,Innen,rot"
- Flexible LED Strips with Lateral Light Emission, Self-Adhesive Backing,
- for Indoor Use
- For Indoor Use
- Separable Every 2,5 cm or 3 LEDs
- LED Distance: 8 mm
- Light Colors: White 5500K 500K, Warm White
- 3200K 500K Red, Green, Blue, Yellow
- Easy Installation with Solder-less Plug Connections
- Maximum Length per Connection: 10 Meters
- Delivery Contents for 88944 + 88945: 5 Meter Roll, 5 Power Supply Connectors, 1
- Direct Connector
- Items 88610 up to 88613 Are Delivered without Accessories
- SECONDLIFE ITEM -heavily discounted- only while stocks last!
Technical Data
| BAR code: | 4012094886107 |
|---|---|
| Width: | 5 mm |
| Height: | 1 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per fixture (lm): | 168 lm |
| Lumen per LED (lm): | 0,28 lm |
| Current: | 4000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 120 |
| Cutting length in mm: | 25 mm |
| Power W/m: | 9,6 |
| Lumen per meter: | 33,6 |
| Lumen per watt: | 3,5 |
| IP protection rating: | 20 |
| Power: | 48 W |
| Led color code: | Rot |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 12 V |
| Anzahl led: | 600 |
| Gehaeuse code: | Kunststoff |
| Auslaufartikel: | Yes |
| Ecodesign: | not relevant |
