CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Very light - profile necessary
Product number:
84576
Flexible LED Leiste,Innen,RGB 24V
Product information "Flexible LED Leiste,Innen,RGB 24V"
- flexible LED Strip with self adhesive backside,
- for indoor use.

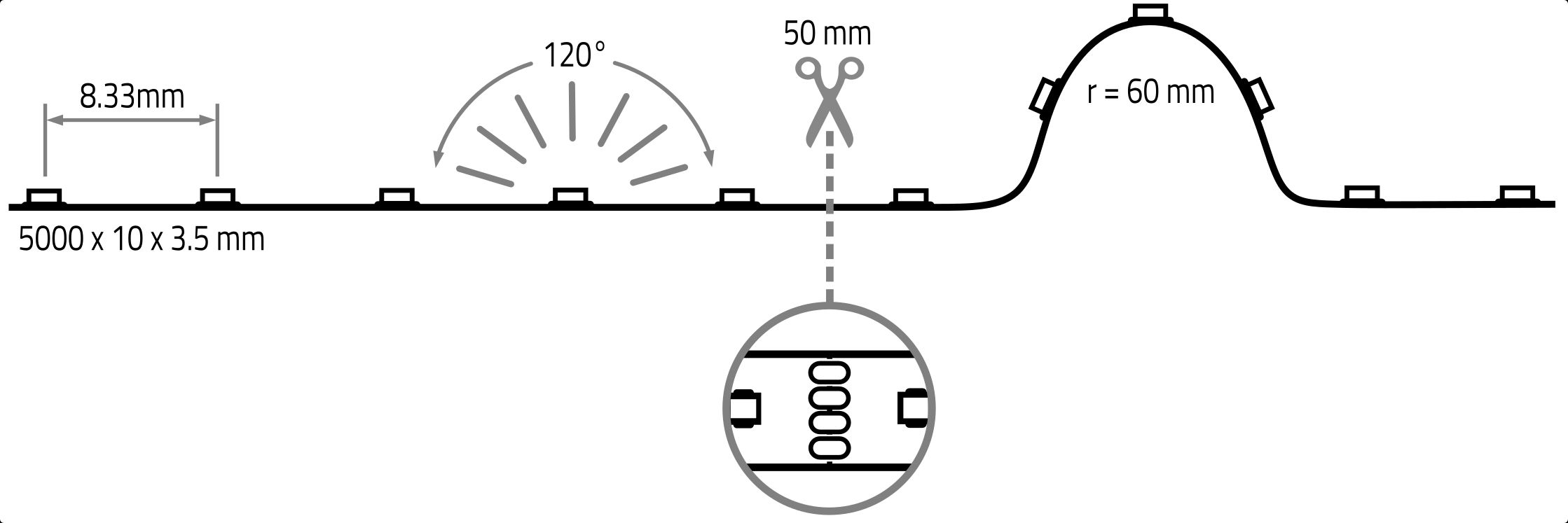

- Can be seperated every 50 mm or 6 LEDs
- Number of LEDs: 600
- LED pitch: 8.33 mm
- beam angle: 120°
- CRI: -
- Lumen per meter: 634 lm
- Voltage: 24V DC
- Power per meter: 19,2 W
- Lifetime L70B50: >= 60,000 h
- LxWxH in mm: 5,000 x 10 x 3.5
- Caution: Do not operate strip without aluminium profile
- and adequate ventilation.
- Maximum length per connection: 5 meter. New connectors for greater length.
- Delivery contents: 5 meter roll
Technical Data
| BAR code: | 4012094845760 |
|---|---|
| Width: | 10 mm |
| Height: | 3 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per fixture (lm): | 3170 lm |
| Lumen per LED (lm): | 5,28 lm |
| Current: | 4000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 120 |
| Cutting length in mm: | 50 mm |
| Power W/m: | 19,2 |
| Lumen per meter: | 634 |
| Lumen per watt: | 33,02 |
| IP protection rating: | 20 |
| Power: | 96 W |
| Catalog color code: | weiss |
| Led color code: | RGB |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 600 |
| L70: | 60000 |
| LebensdauerL70B50: | 60000 |
| Ecodesign: | not relevant |
| Psb: | 0,00 |
| Service life L90B10: | 25000 |
