CE
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Product number:
88541

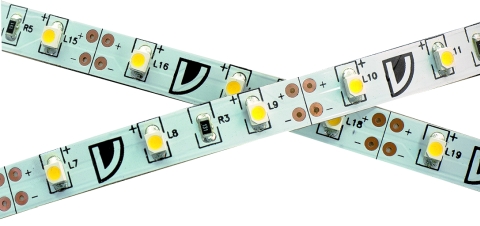

Flexible LED Leiste,Innen,Gelb
Product information "Flexible LED Leiste,Innen,Gelb"
- flexible LED Strip with self adhesive backside,
- for indoor use.
- Can be seperated every 50 mm or 3 LEDs
- Number of LEDs: 300
- LED pitch: 16.67 mm
- beam angle: 120°
- CRI: -
- Lumen per meter: 54 lm
- Voltage: 12V DC
- Power per meter: 4,8 W
- Lifetime L70: >= 35.000h
- energy efficiency class: C
- LxWxH in mm: 5.000 x 8 x 2,5
- Easy installation with solderless connector.
- Maximum length per connection: 10 meter. New connectors for greater length.
- Delivery contents: 5 meter roll, 5 power supply connector, 1 direct connector
Technical Data
| BAR code: | 4012094885414 |
|---|---|
| Width: | 8 mm |
| Height: | 2 mm |
| Length: | 5000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 270 lm |
| Lumen per LED (lm): | 0,90 lm |
| Current: | 2000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 50 mm |
| Power W/m: | 4,8 |
| Lumen per meter: | 54 |
| Lumen per watt: | 11,25 |
| IP protection rating: | 20 |
| Power: | 24 W |
| Led color code: | Gelb/Amber |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 12 V |
| Anzahl led: | 300 |
| Gehaeuse code: | Kunststoff |
| Re skus: | 70434,70438,70534,70538 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| Ecodesign: | not relevant |
