Product number:
79498
Flex.LEDStrip,48V,9,3W/m,Innen,4000K
Product information "Flex.LEDStrip,48V,9,3W/m,Innen,4000K"
- flexible LED Strip with self adhesive backside,
- for indoor use, IP20

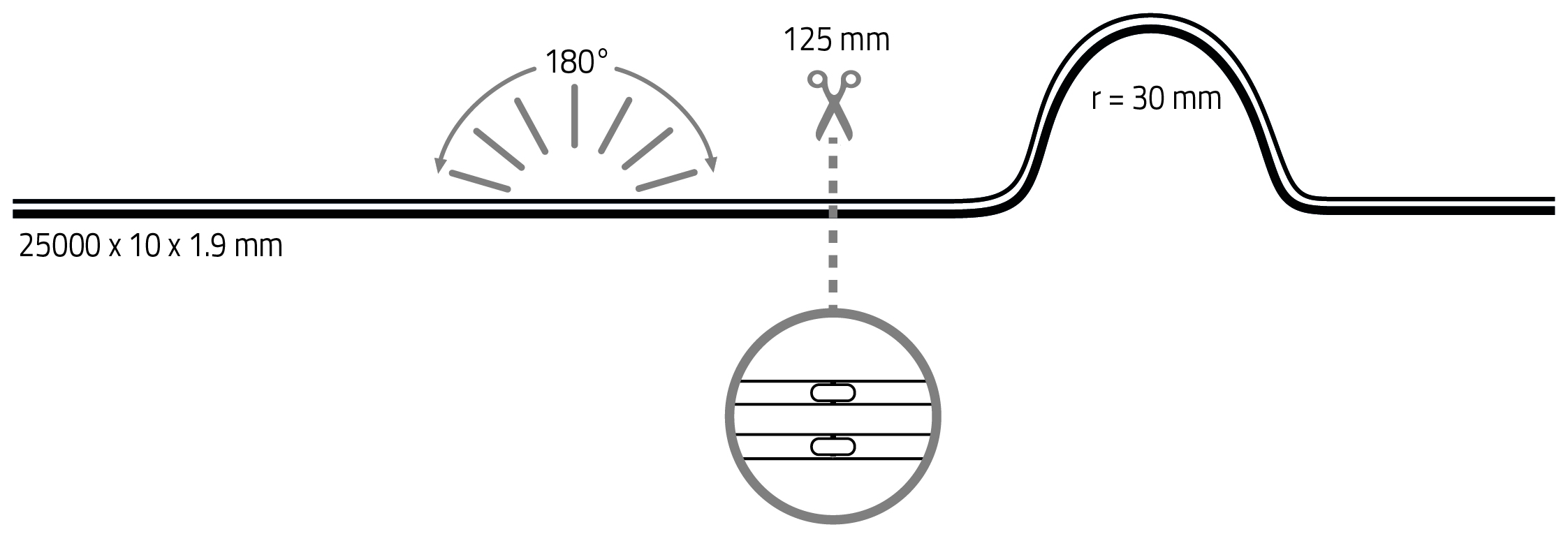

- can be seperated every 125 mm or 42 LEDs
- number of LEDs: 8400
- LED pitch: 2.97 mm
- beam angle: 180°
- CRI: >90
- luminous flux per meter: 880 lm
- voltage: 48V DC
- power per meter: 9.3 W
- lifespan L70B50: >= 78,000 h
- energy efficiency class: G
- LxWxH in mm: 25,000 x 10 x 1.9
- Maximum length per connection: 25 metres. New Connectors for greater length.
- Delivery contents: 25 metre roll with 300 mm connection cable
- 8% SPECIAL RABTE FOR CLAIM (G/L ACCOUNT 3200) 1 TIME VALID
- TEXTBAUSTEIN CAN BE DELETED AFTERWARDS
Technical Data
| BAR code: | 4012094794983 |
|---|---|
| Width: | 10 mm |
| Height: | 1 mm |
| Length: | 25000 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per fixture (lm): | 22000 lm |
| Lumen per LED (lm): | 2,62 lm |
| Current: | 4843 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 336 |
| Cutting length in mm: | 125 mm |
| Power W/m: | 9,3 |
| Lumen per meter: | 880 |
| Lumen per watt: | 94,62 |
| IP protection rating: | 20 |
| Power: | 232,5 W |
| Energy efficiency class: | EEK-Label_F |
| CRI: | 90 |
| Catalog color code: | weiss |
| Led color code: | ca. 4000K neutralweiß |
| Leuchte: | including LED |
| Beam angle: | 180 Grad ° |
| Voltage: | 48 V |
| Anzahl led: | 8400 |
| Gehaeuse code: | Kunststoff |
| L70: | 50000 |
| LebensdauerL70B50: | 78000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
| Service life L90B10: | 36000 |
