CE
Parallel connection
Protection class III
RoHS
UV-resistant
Product number:
86013

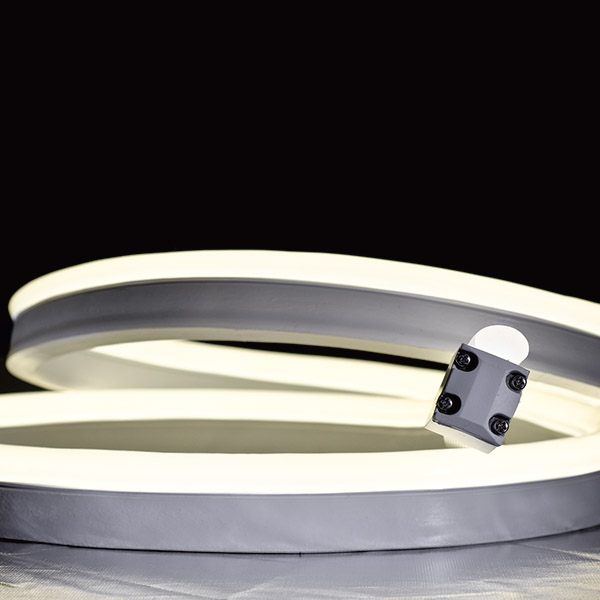

Flex.LEDStrip,24V,UWW 10M 120W
Product information "Flex.LEDStrip,24V,UWW 10M 120W"
- Flexible LED Strips Sealed in UV, Chlorine,
- Salt Water and Solvent Resistant PVC, White,
- for Indoor and Outdoor Use
- Separable Every 100 mm or 6 LEDs, LED Distance: 16.67 mm
- Easy Installation with Solder-less Plug Connections
- Bending Radius: 12 cm
- Installation Width 11,5 mm
- Delivery Contents: 10 or 20 Meter Roll, Installed with Power Supply Connectors
- on Both Ends(10 m Version Has 1 Power Supply Connector and 1 End Cap)
- Up to 20 Meters Can Be Installed without Interruption (Above 10 Meters in
- Length, Connect Both Ends to a Power Supply).
Technical Data
| BAR code: | 4012094860138 |
|---|---|
| Width: | 15 mm |
| Height: | 29 mm |
| Length: | 10000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 3200 lm |
| Lumen per LED (lm): | 5,33 lm |
| Current: | 5000 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 60 |
| Cutting length in mm: | 100 mm |
| Power W/m: | 12 |
| Lumen per meter: | 320 |
| Lumen per watt: | 26,67 |
| IP protection rating: | 68 |
| Power: | 120 W |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 270 Grad ° |
| Voltage: | 24 V |
| Anzahl led: | 600 |
| Gehaeuse code: | Kunststoff |
| Re skus: | 68314,80474,85453 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| Ecodesign: | not assigned |
